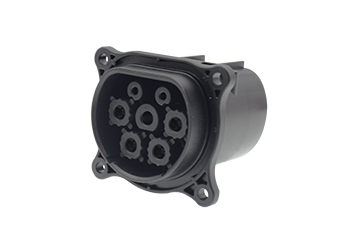

HVCOILFS706NTLXXXX

part number:

HVCOILFS706NTLXXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

housing:

plastic

IP Rating:

IP55

market:

electric vehicle

positions:

product type:

power connector

shape:

voltage:

480V

Rated Voltage: 480V AC (L1, L2,L3,N & PE), 30V DC (PP & CP)

Rated Current: 32A ((L1, L2,L3& N：6MM2 Cable), 2A Max (PP & CP)

Mating Cycles >10,000 Cycles

DESCRIPTION

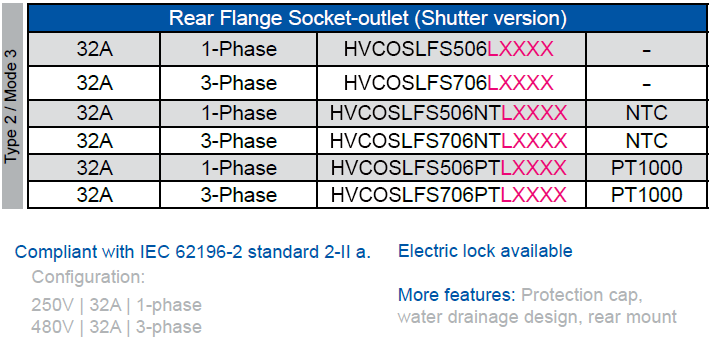

IEC SOCKET OUTLET OF SHUTTER, 32A 3P CABLE ASSEMBLY, NTC
