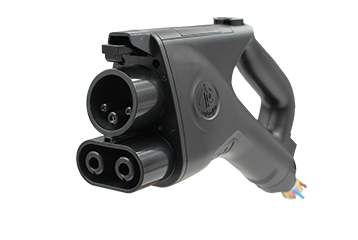

CCS1 HPC VEHICLE CONNECTOR
part number:
HVCO11012LXXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
500A
housing:
plastic
IP Rating:
IP67
market:
electric vehicle
positions:
5
product type:
power connector
voltage:
1000V
DESCRIPTION
CCS1 COMBO COOLING PLUG WITH HANDLE 600A CABLE ASSEMBLY,SAEJ1772
