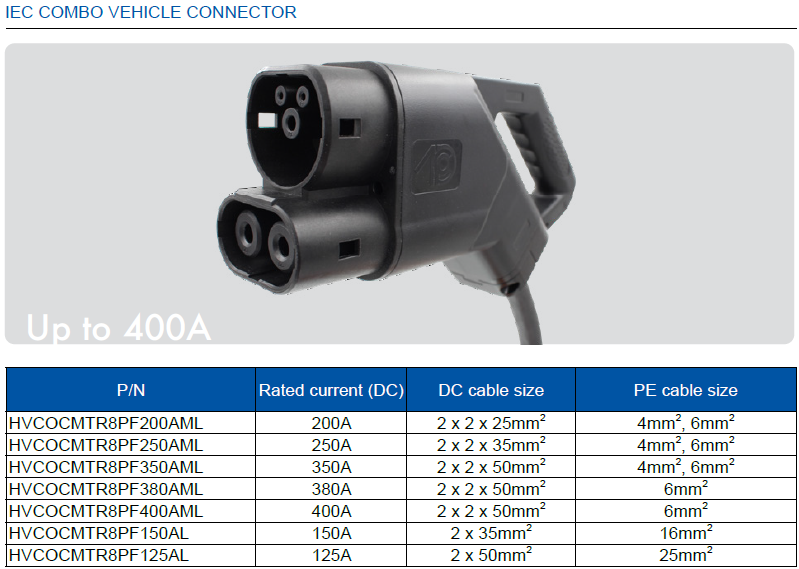

HVCOCMTR8PF200AMLXXXX

part number:

HVCOCMTR8PF200AMLXXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

housing:

plastic

IP Rating:

IP55

market:

electric vehicle

positions:

product type:

power connector

voltage:

1000V

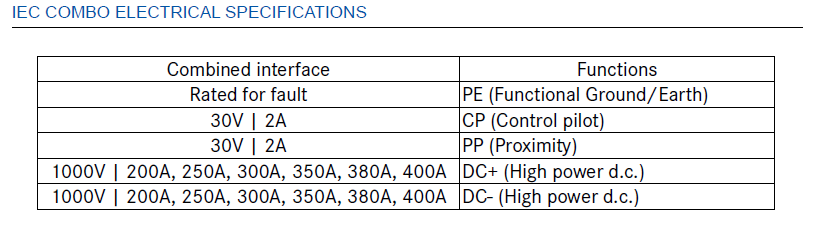

Rated Voltage: 1000V DC (DC+, DC- ), 30V (CP & PP)

Rated Current: 200A (2X25mm2), 2A Max (CP & CP)

DESCRIPTION

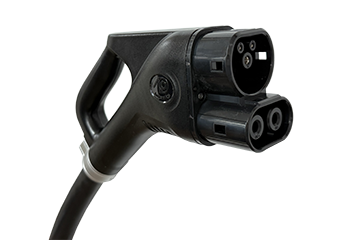

IEC COMBO FOR VEHICLE PLUG 200A，POTTED VERSION
