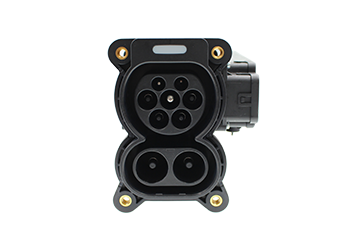

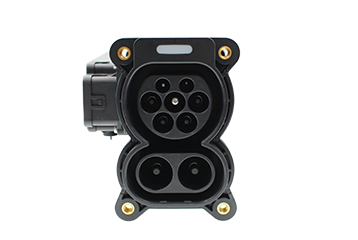

GEN 3 CCS2 INLET

part number:

HVCOCFXXXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

300A

housing:

plastic

IP Rating:

IP55 IP67 IP44

market:

electric vehicle

positions:

7 9

product type:

power connector

voltage:

1000V

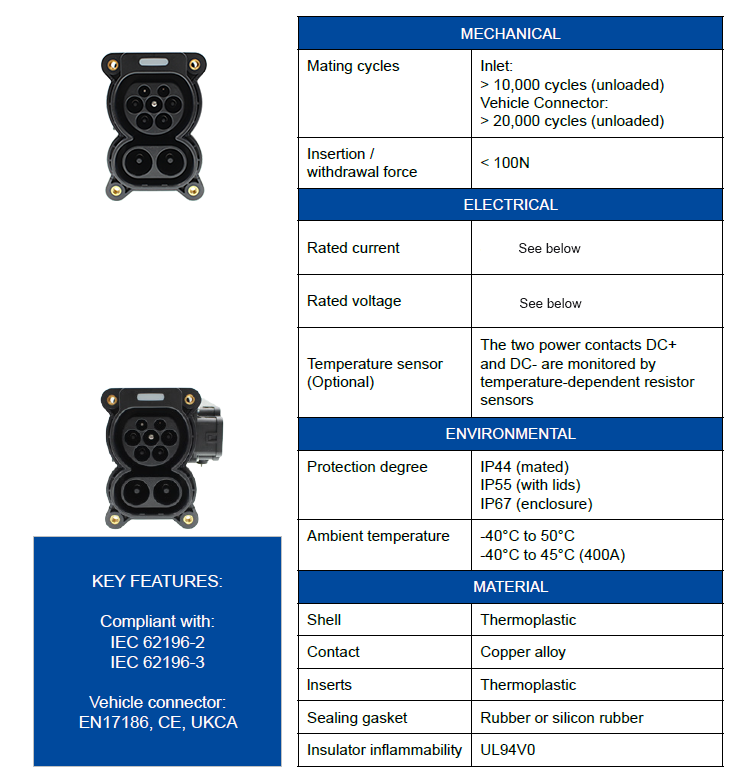

Mating Cycles >10,000 Cycles

DESCRIPTION

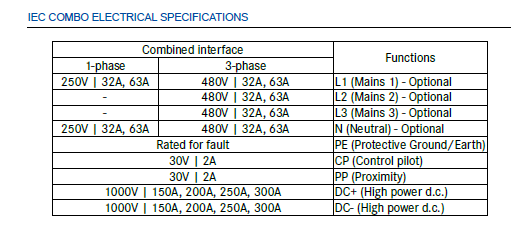

GEN 3 CCS2 VEHICLE INLET AC32A/63A+DC80 TO 300A, DC1000V CABLE ASSEMBLY

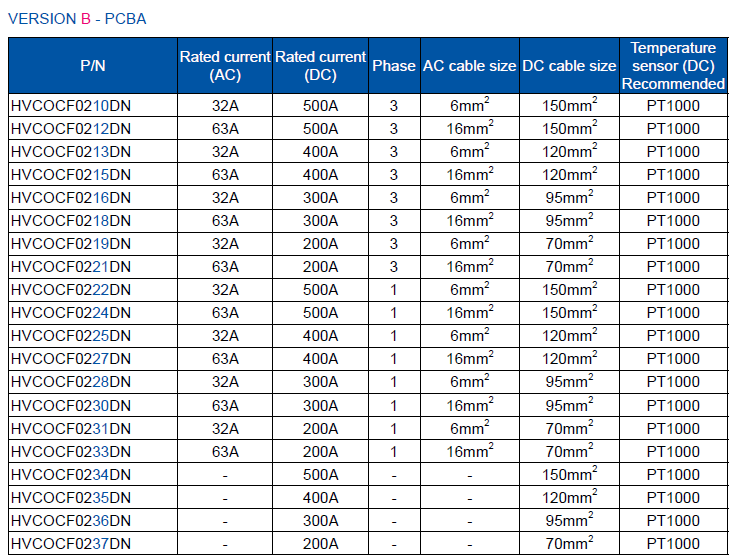

GEN 3 CCS2 INLET P/N:
HVCOCFXXXX1, AC32A/63A, DC150A TO 300A ,DC 1000V, NO LED
HVCOCFXXXXS, AC32A/63A, DC80A ,DC 1000V

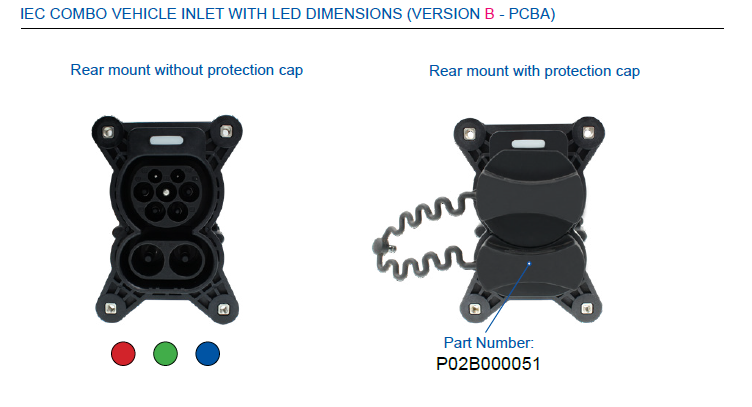

HVCOCFXXXX2, AC32A/63A, DC150A TO 300A ,DC 1000V, LED 24V
HVCOCFXXXX, AC32A/63A, DC150A TO 300A ,DC 1000V, LED 14V
