HVCOIFR6SFXXXNTLXXXX
part number:
HVCOIFR6SFXXXNTLXXXX
specifications:
connection:
crimp
current:
housing:
plastic
IP Rating:
IP55
market:
electric vehicle
positions:
7
5
product type:
power connector
voltage:
250V
480V
Mating Cycles >10,000 Cycles

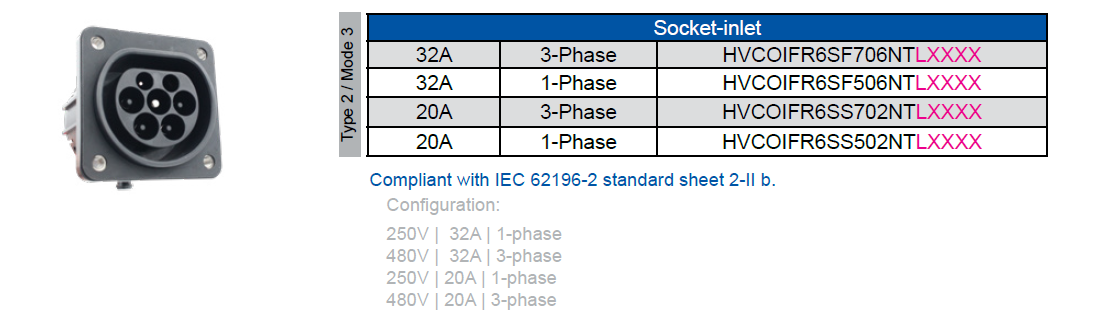

HVCOIFR6SF706NTLXXXX

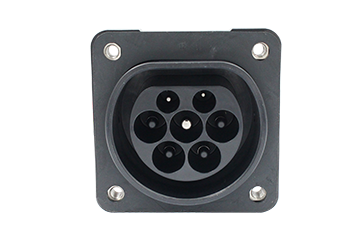

IEC TYPE 2 SOCKET INLET FOR EV, 3 PHASE 32A
HVCOIFR6SF506NTLXXXX
IEC TYPE 2 SOCKET INLET FOR EV, 1 PHASE 32A
HVCOIFR6SS702NTLXXXX
IEC TYPE 2 SOCKET INLET FOR EV, 3 PHASE 20A
HVCOIFR6SS502NTLXXXX
IEC VEHICLE INLET SOCKET AC, 1-PHASE 20A CABLE ASSEMBLE
IEC TYPE 2 SOCKET INLET FOR EV, 3 PHASE 32A
HVCOIFR6SF506NTLXXXX
IEC TYPE 2 SOCKET INLET FOR EV, 1 PHASE 32A
HVCOIFR6SS702NTLXXXX
IEC TYPE 2 SOCKET INLET FOR EV, 3 PHASE 20A
HVCOIFR6SS502NTLXXXX
IEC VEHICLE INLET SOCKET AC, 1-PHASE 20A CABLE ASSEMBLE
RELATED ITEMS
HVCOSFSXXXLXXXX
SHUTTER VERSION SOCKET OUTLET FOR EVSE SIDE, 32A 1/3 PHASE, NTC/PT1000, CABLE ASSEMBLY
