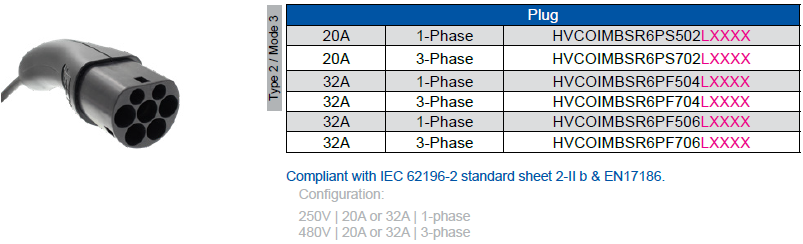

HVCOIMBSR6PXXXXLXXXX

part number:

HVCOIMBSR6PXXXXLXXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

housing:

plastic

IP Rating:

IP55

market:

electric vehicle

positions:

7 5

product type:

power connector

voltage:

250V 480V

Rated Voltage: 250V /480V, 30V DC (PP & CP)

Rated Current: 16A/20A, 32A, 2A (PP & CP)

Mating Cycles >10,000 Cycles

DESCRIPTION

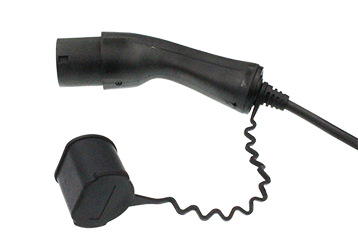

IEC TYPE 2 PLUG FOR EVSE 16A/20A OR 32A, 1 PHASE / 3 PHASE, 250V / 480V
