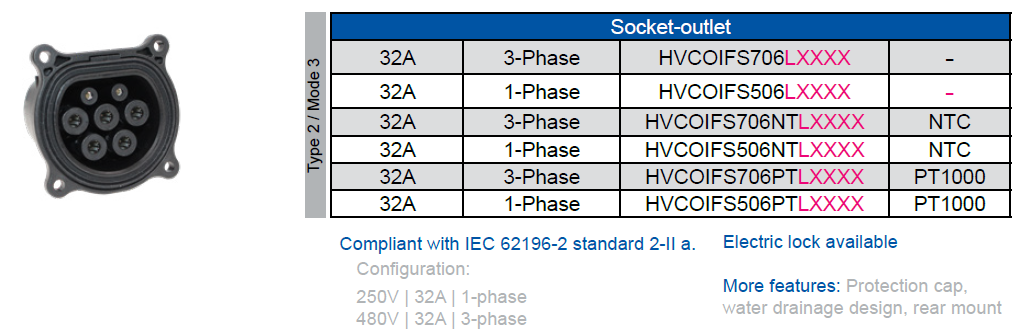

HVCOSFS506LXXXX

part number:

HVCOSFS506LXXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

housing:

plastic

IP Rating:

IP55

market:

electric vehicle

positions:

product type:

power connector

shape:

voltage:

250V

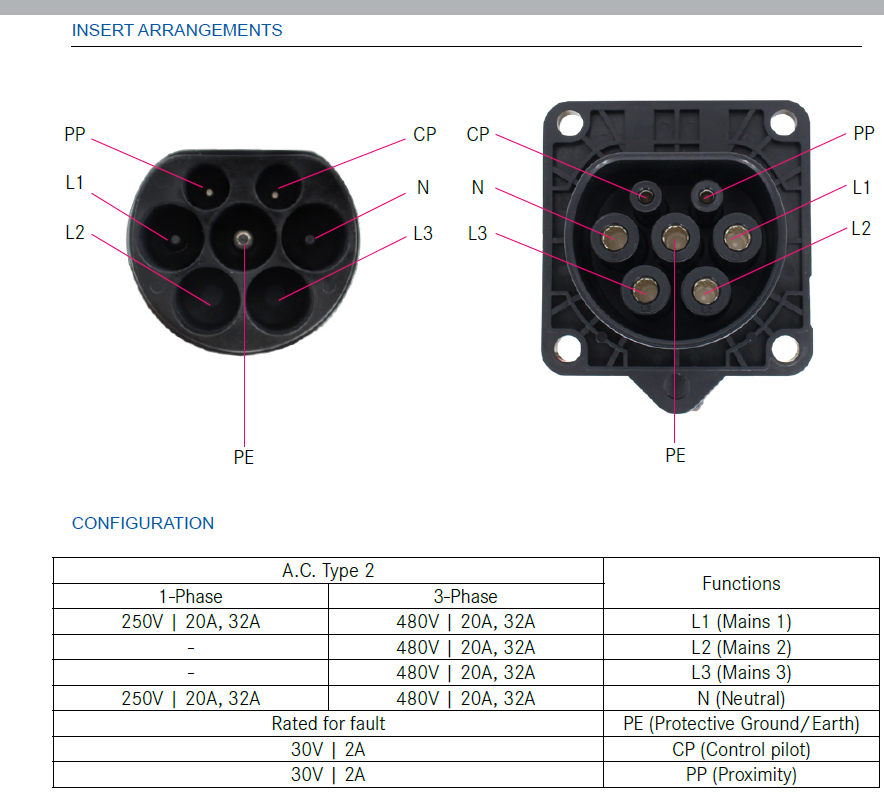

Rated Voltage: 250V AC (LI, N & PE), 30V DC (PP & CP)

Rated Current: 32A (LI,& N：6MM2 Cable), 2A Max (PP & CP)

Mating Cycles >10,000 Cycles

DESCRIPTION

IEC SOCKET OUTLET OF SHUTTER, 32A 1P CABLE ASSEMBLY
