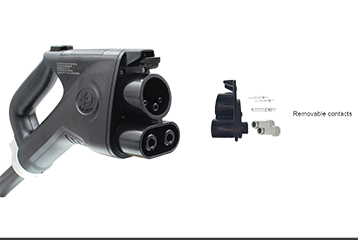

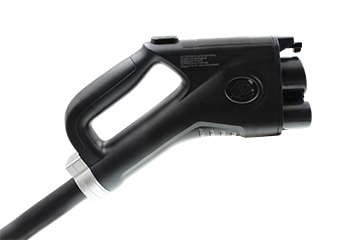

GEN3 CCS1 REPLACEABLE CONTACT VEHICLE CONNECTOR

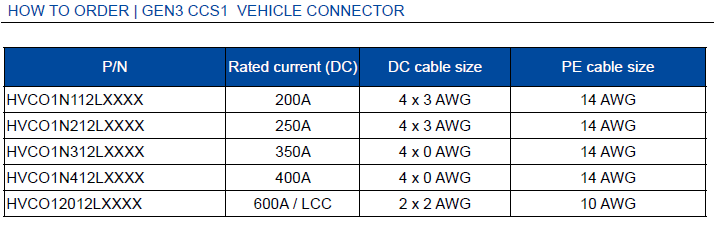

part number:

HVCO1NX12LXXXX

datasheet:

view / download

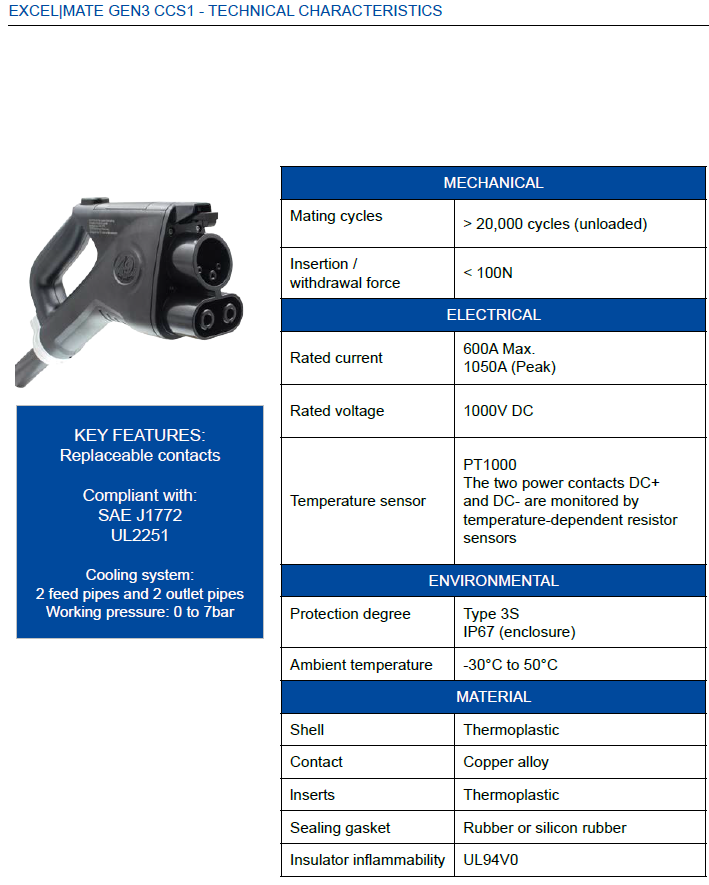

specifications:

connection:

crimp

housing:

plastic

IP Rating:

IP67

market:

electric vehicle

positions:

product type:

power connector

voltage:

1000V

Rated Current: 200A, 250A, 350A,400A,600A

DESCRIPTION
