HVCOSFXXXLXXXX
part number:
HVCOSFXXXLXXXX
datasheet:
specifications:
connection:
crimp
current:
housing:
plastic
IP Rating:
IP55
IP67
IP44
market:
electric vehicle
positions:
7
product type:
power connector
voltage:
1000V
250V

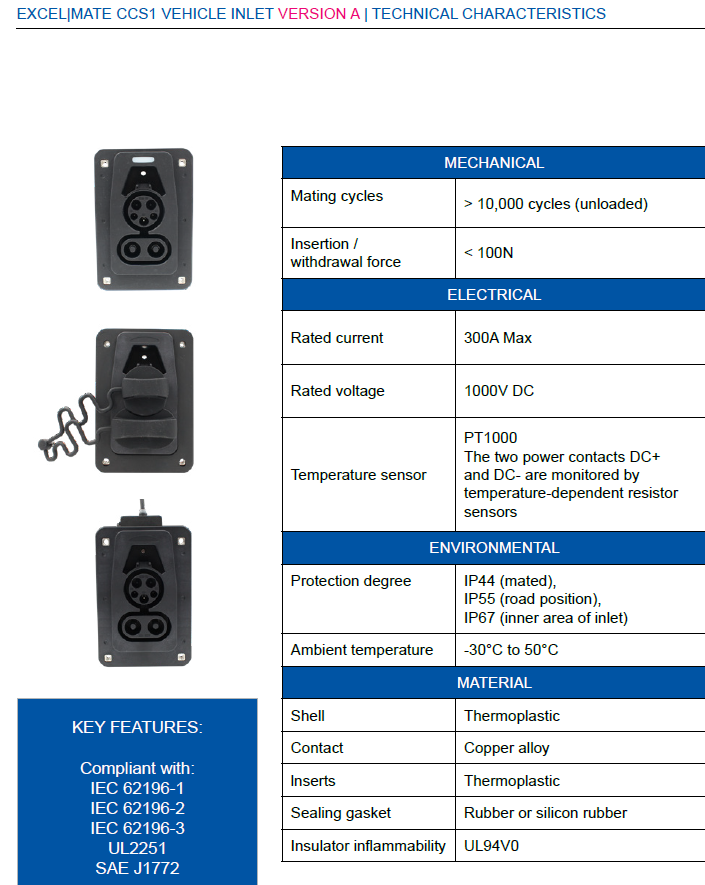

Mating Cycles >10,000 Cycles

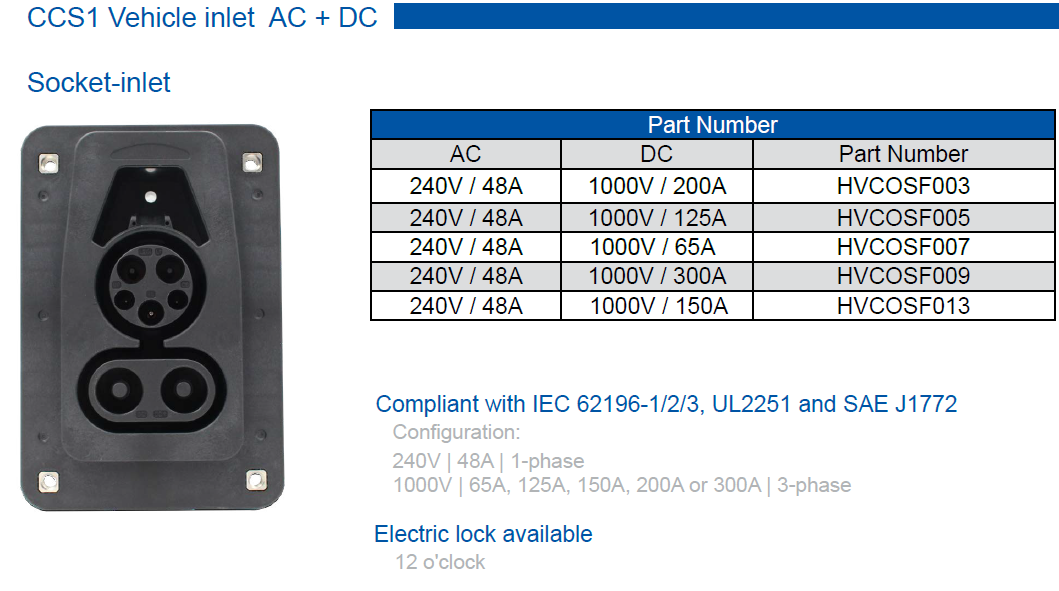

CCS1 VEHICLE INLET, DC300A MAX+AC48A, VERSION A, LED AVAILABLE,CABLE ASSEMBLY
WITHOUT LED P/N:
HVCOSF003LXXXX
CCS1 VEHICLE INLET, DC1000V/200A+ AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF005LXXXX
CCS1 VEHICLE INLET, DC1000V/125A+AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF007LXXXX
CCS1 VEHICLE INLET, DC1000V/65A+ AC240V/48A, WITHOUT LED
HVCOSF009LXXXX
CCS1 VEHICLE INLET, DC1000V/300A+AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF013LXXXX
CCS1 VEHICLE INLET, DC1000V/150A+AC240V/48A, WITHOUT LED

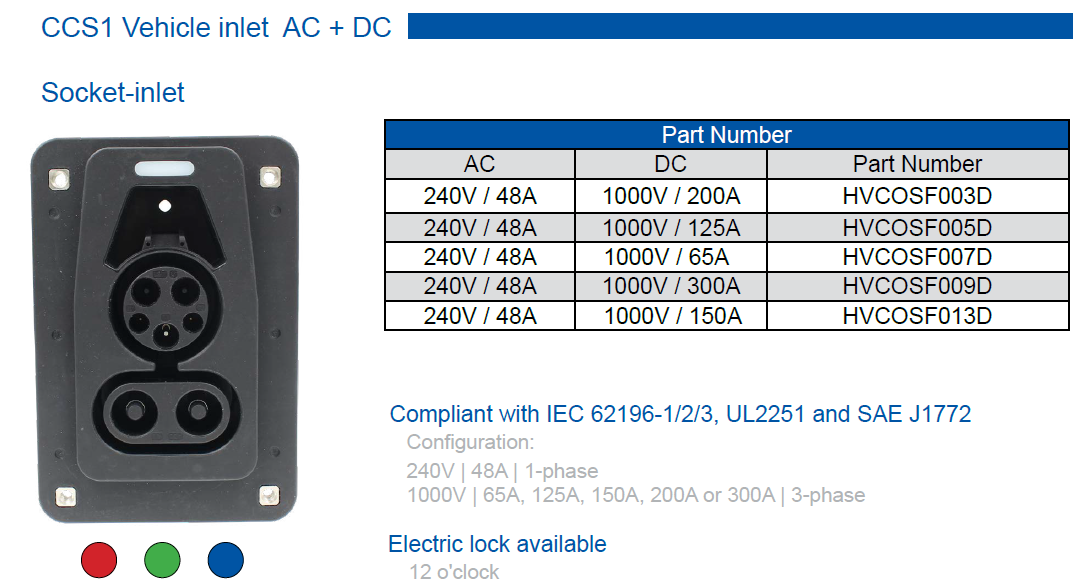

WITH LED P/N:
HVCOSF003DLXXXX
CCS1 VEHICLE INLET, DC1000V/200A+ AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF005DLXXXX
CCS1 VEHICLE INLET, DC1000V/125A+AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF007DLXXXX
CCS1 VEHICLE INLET, DC1000V/65A+ AC240V/48A, WITH LED
HVCOSF009DLXXXX
CCS1 VEHICLE INLET, DC1000V/300A+AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF013DLXXXX
CCS1 VEHICLE INLET, DC1000V/150A+AC240V/48A, WITH LED
WITHOUT LED P/N:
HVCOSF003LXXXX
CCS1 VEHICLE INLET, DC1000V/200A+ AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF005LXXXX
CCS1 VEHICLE INLET, DC1000V/125A+AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF007LXXXX
CCS1 VEHICLE INLET, DC1000V/65A+ AC240V/48A, WITHOUT LED
HVCOSF009LXXXX
CCS1 VEHICLE INLET, DC1000V/300A+AC240V/48A, WITHOUT LED, CABLE ASSEMBLY
HVCOSF013LXXXX
CCS1 VEHICLE INLET, DC1000V/150A+AC240V/48A, WITHOUT LED
WITH LED P/N:
HVCOSF003DLXXXX
CCS1 VEHICLE INLET, DC1000V/200A+ AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF005DLXXXX
CCS1 VEHICLE INLET, DC1000V/125A+AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF007DLXXXX
CCS1 VEHICLE INLET, DC1000V/65A+ AC240V/48A, WITH LED
HVCOSF009DLXXXX
CCS1 VEHICLE INLET, DC1000V/300A+AC240V/48A, WITH LED, CABLE ASSEMBLY
HVCOSF013DLXXXX
CCS1 VEHICLE INLET, DC1000V/150A+AC240V/48A, WITH LED
