HVCOSF04XD

part number:

HVCOSF04XD

datasheet:

view / download

specifications:

connection:

crimp

housing:

plastic

IP Rating:

IP44

market:

electric vehicle

positions:

product type:

power connector

shape:

circular

voltage:

1000V

Rated Current: 500A Max

Mating Cycles >10,000 Cycles

DESCRIPTION

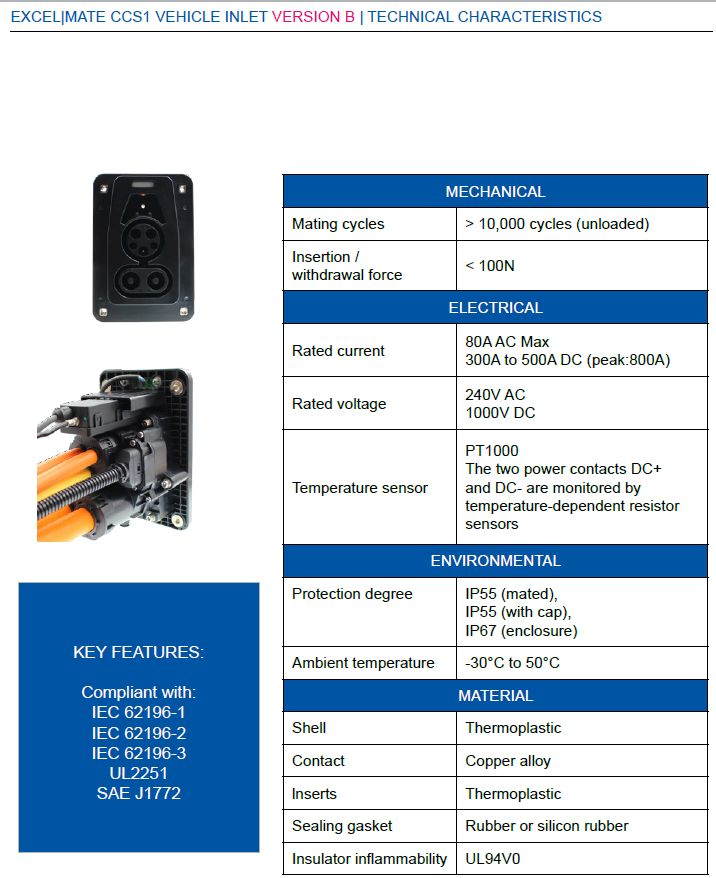

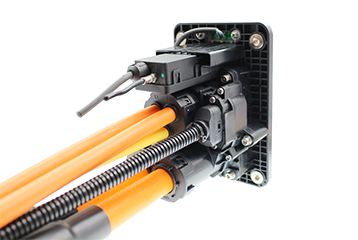

CCS1 VEHICLE INLET, WITH LED, VERSION 2

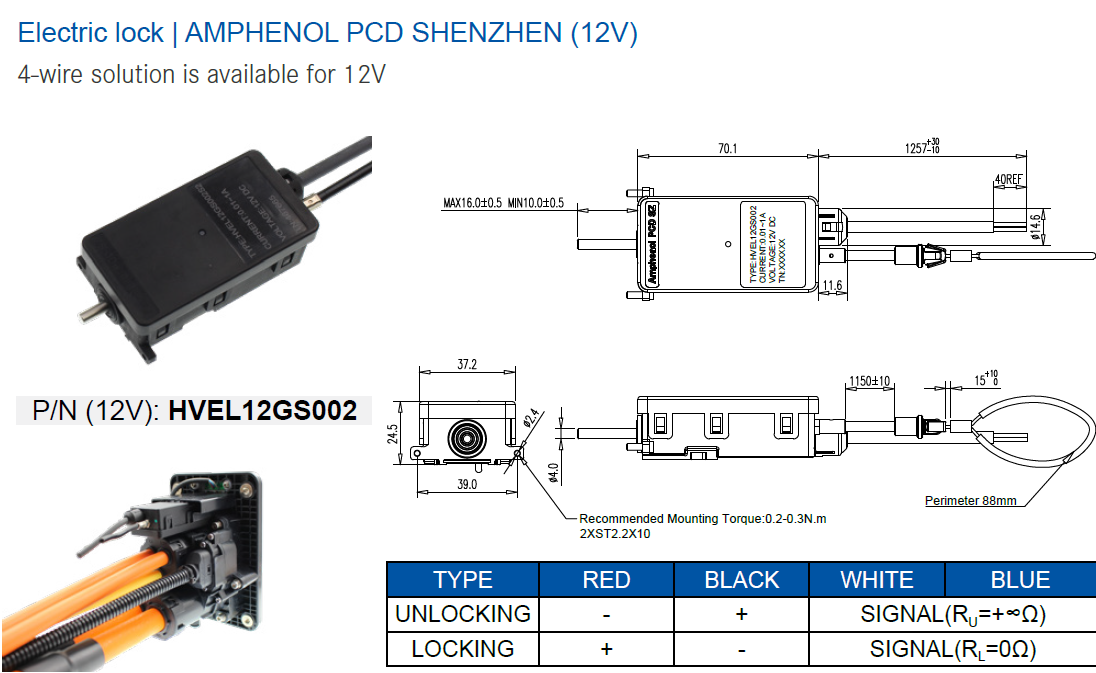

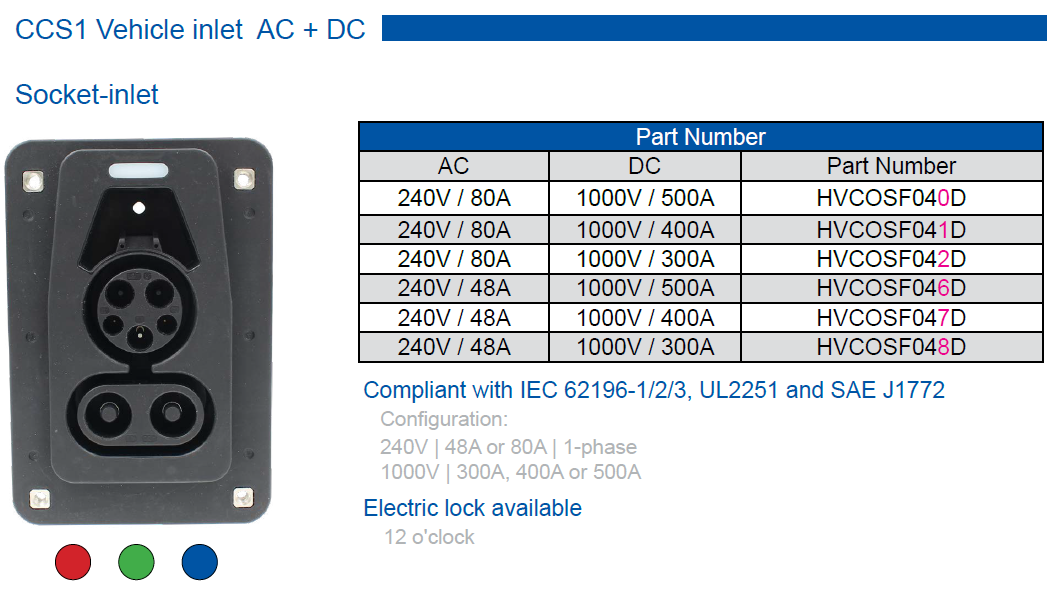

AC+DC:
1. HVCOSF040D, DC1000V/500A+ AC240V/80A
2. HVCOSF041D, DC1000V/400A+ AC240V/80A
3. HVCOSF042D, DC1000V/400A+ AC240V/80A

4. HVCOSF046D, DC1000V/500A+ AC240V/48A
5. HVCOSF047D, DC1000V/500A+ AC240V/48A
6. HVCOSF048D, DC1000V/500A+ AC240V/48A

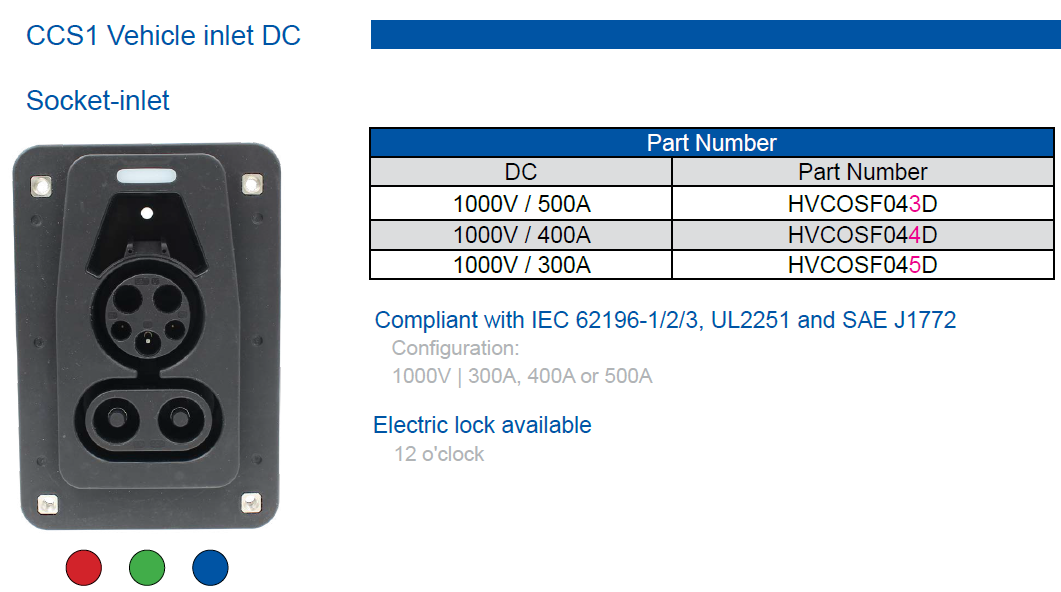

DC:
7. HVCOSF043D, DC1000V/500A
8. HVCOSF044D, DC1000V/400A
9. HVCOSF043D, DC1000V/300A
