CHD14061XXXX
part number:
CHD14061XXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
300A 350A 500A 430A
housing:
metal
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
1
product type:
power connector
voltage:
1500V

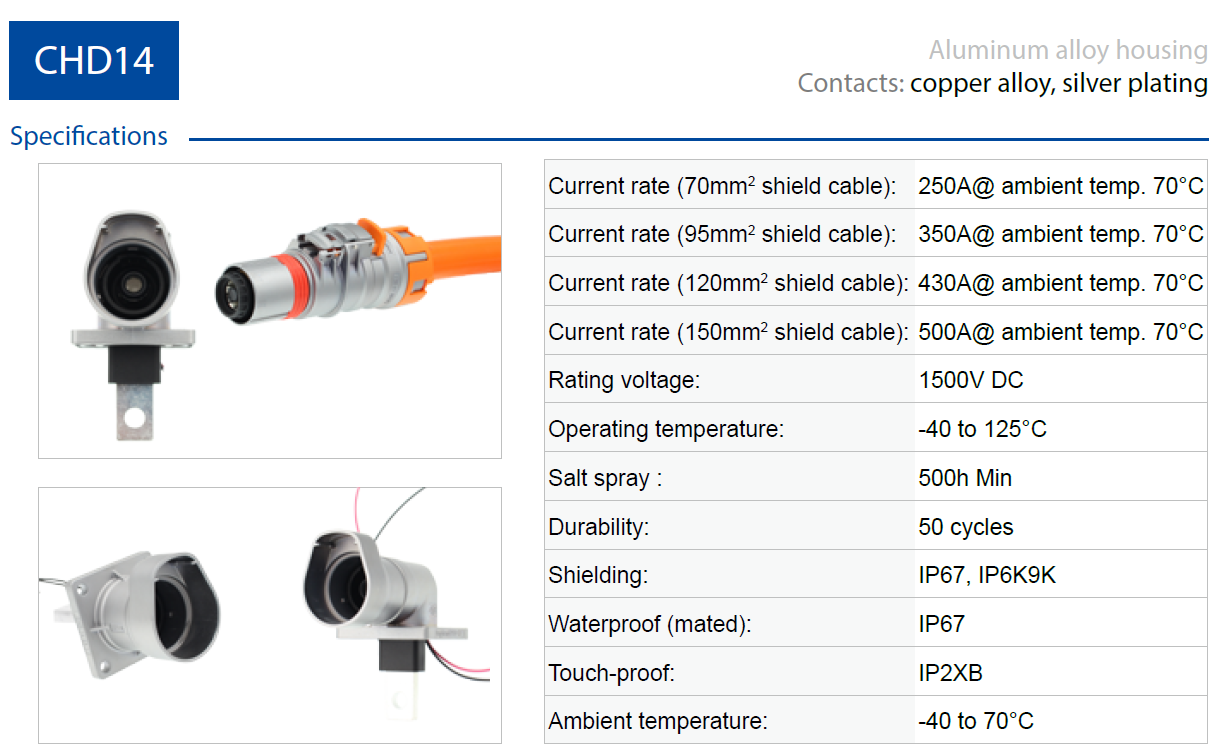

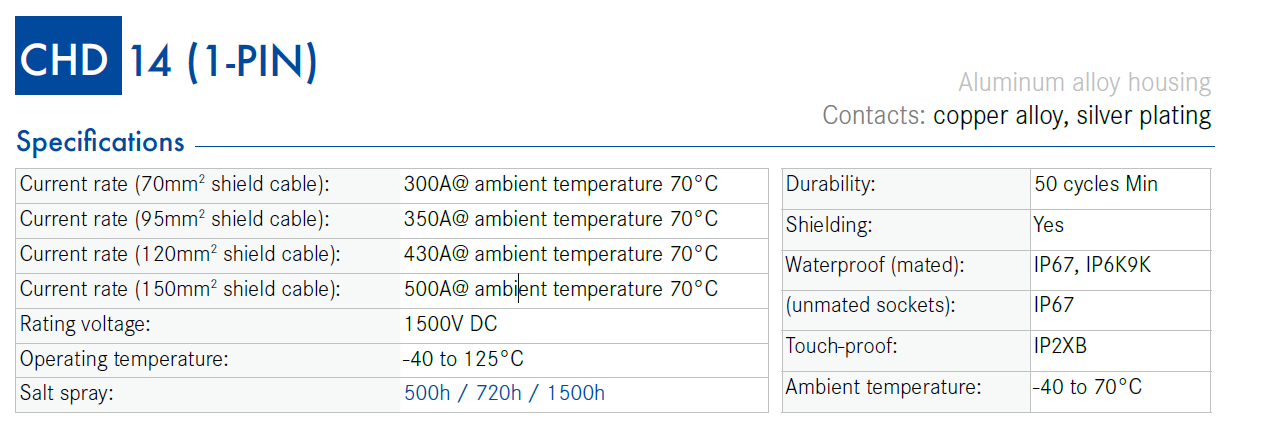

DESCRIPTION
STRAIGHT PLUG, CODING A/B/C/D/E, WITH / WITHOUT HVIL

RATED CURRENT: 500A@150MM2 SHIELD CABLE
RATED CURRENT: 430A@120MM2 SHIELD CABLE
RATED CURRENT: 350A@ 95MM2 SHIELD CABLE
RATED CURRENT: 300A@ 70MM2 SHIELD CABLE

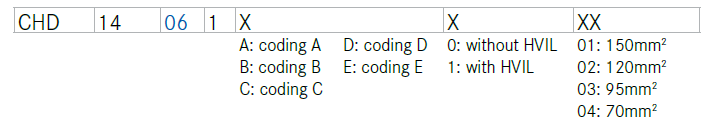

HOW TO ORDER:
