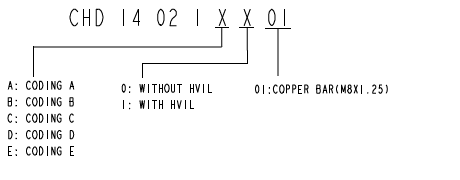

CHD14021XX01
part number:
CHD14021XX01
datasheet:
  view / download
specifications:
connection:
bus bar
current:
500A
housing:
metal
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
1
product type:
power connector
shape:
circular
voltage:
Rated Voltage: 1500V
Rated Current: 500A@150MM2 SHIELD CABLE
Rated Current: 430A@120MM2 SHIELD CABLE
Rated Current: 350A@ 95MM2 SHIELD CABLE
DESCRIPTION

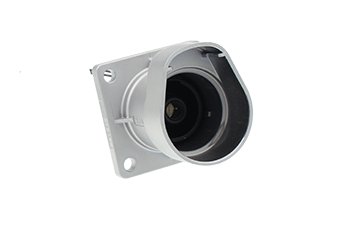

RECEPTACLE,, CODING, HVIL, COOPER BAR TERMINATION
