CHD10021XX01
part number:
CHD10021XX01

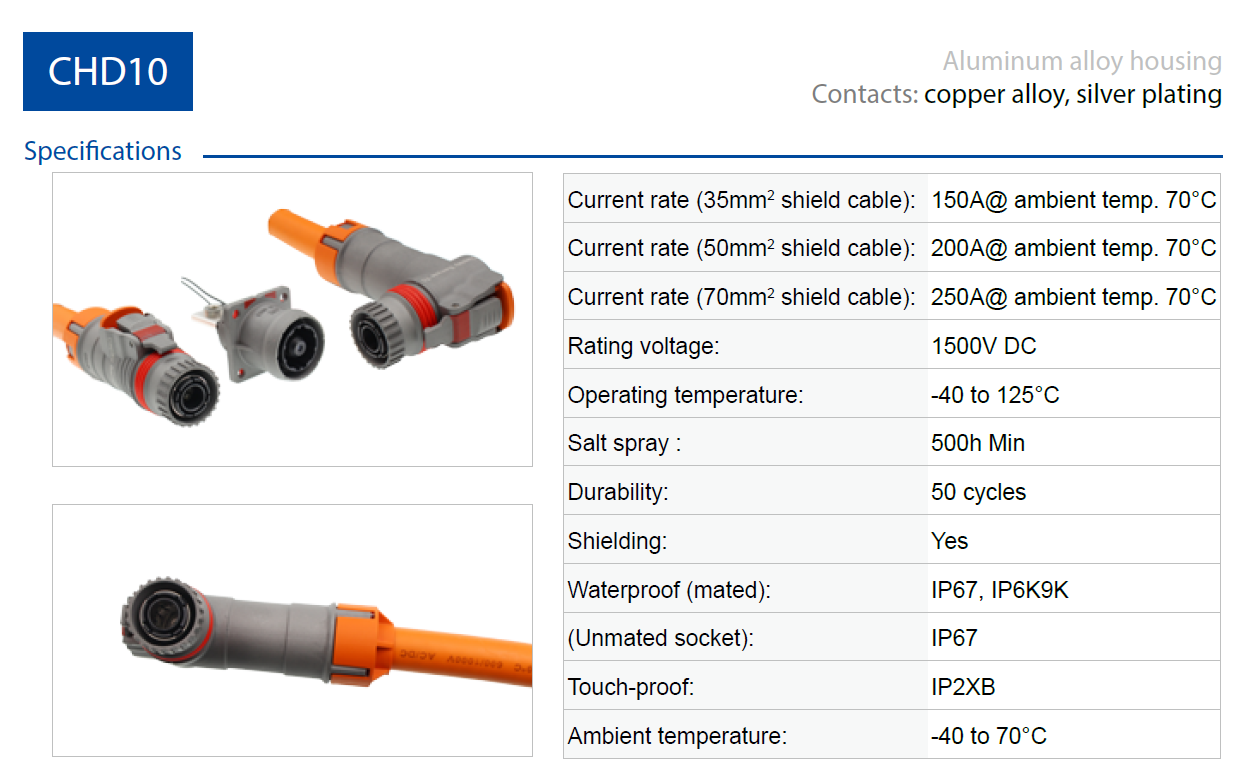

specifications:
connection:
crimp
current:
250A
housing:
metal
IP Rating:
IP67
IP6K9K
market:
electric vehicle
positions:
1
product type:
power connector
shape:
circular
voltage:
1500V
Rated Current: 250A@70MM2 SHIELD CABLE
Rated Current: 200A@50MM2 SHIELD CABLE
Rated Current: 150A@ 35MM2 SHIELD CABLE
RECEPTACLE, CODING, HVIL
