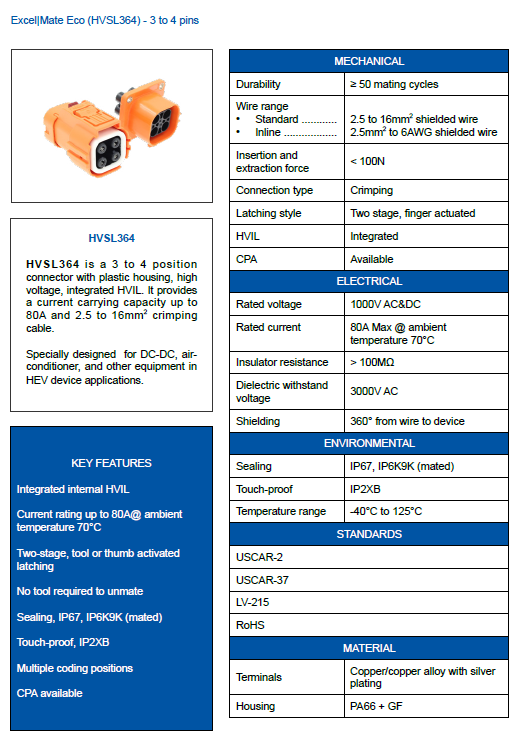

HVSL364024X
part number:
HVSL364024X
specifications:
connection:
crimp
current:
23A
32A
40A
46A
housing:
plastic
IP Rating:
IP67
IP6K9K
market:
electric vehicle
positions:
4
product type:
power connector
voltage:
1000V
Wire Range: 2.5 To 6 Mm2 Shielded Wire
Rated Current: 46A Max

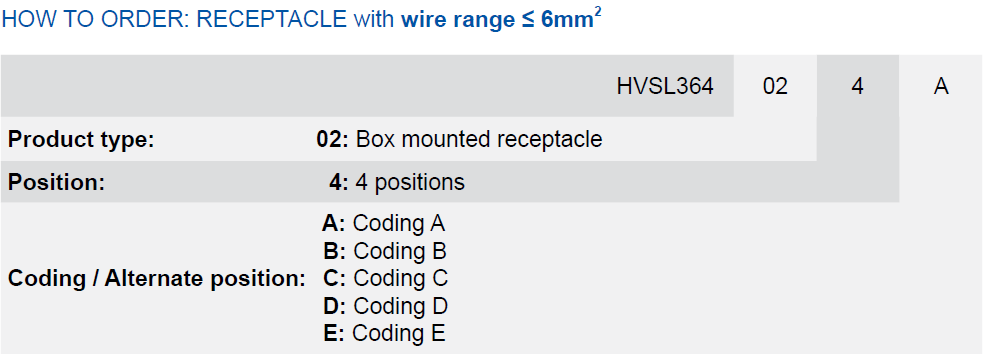

BOX MOUNTED RECEPTACLE, 4+2 PIN (HVIL), 46A MAX, ALTERNATE POSITION A/B/C/D/E
