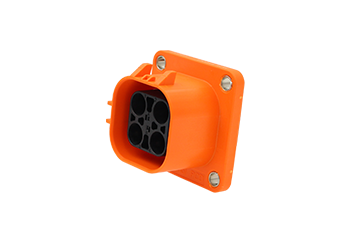

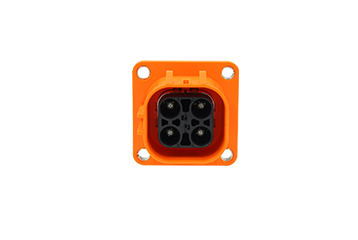

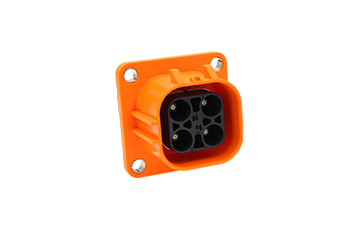

HVSL364024XS11
part number:
HVSL364024XS11
specifications:
connection:
crimp
current:
80A
60A
housing:
plastic
IP Rating:
IP67
IP6K9K
market:
electric vehicle
positions:
4
product type:
power connector
voltage:
1000V
Wire Range: 10 To 16 Mm2 Shielded Wire
Rated Current: 80A Max
BOX MOUNTED RECEPTACLE, 4+2(HVIL) PIN, 80A MAX, ALTERNATE POSITION A/B/C/D/E，80A Max
RATED CURRENT:
80A@16MM2 / 6AWG CABLE SIZE
60A@10MM2 CABLE SIZE
RATED CURRENT:
80A@16MM2 / 6AWG CABLE SIZE
60A@10MM2 CABLE SIZE
