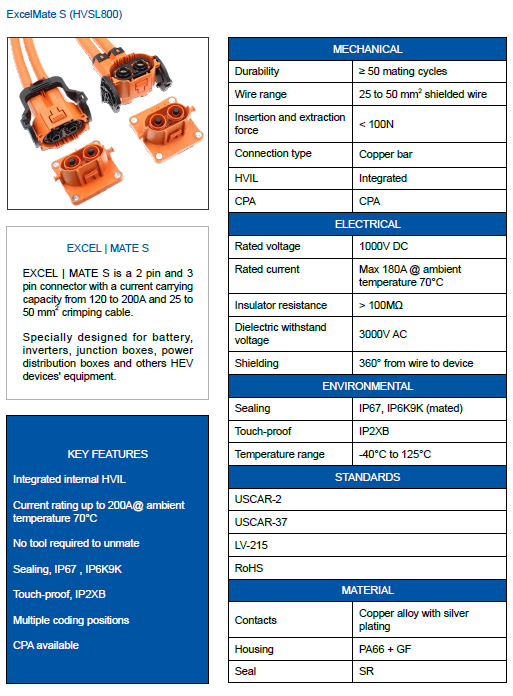

HVSL800023XXXX
part number:
HVSL800023XXXX
datasheet:
  view / download
specifications:
connection:
screw
current:
150A 180A 120A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
3
product type:
power connector
voltage:
1000V
DESCRIPTION
BOX MOUNTED RECEPTACLE, 3 PIN, 180A MAX, ALTERNATE POSITION A/B/C, WITH / WITHOUT HVIL, SCREW INTERNAL, OT TERMINAL M6 OR HOLE H6

RATED CURRENT: 120A@25 MM2 CABLE
                                 150A@35 MM2 CABLE
                                 180A@50 MM2 CABLE

P/N EXAMPLE： HVSL800023A1H6

HOW TO ORDER:
