HVSL800083XXXX
part number:
HVSL800083XXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
150A 180A 120A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
3
product type:
power connector
voltage:
1000V
DESCRIPTION

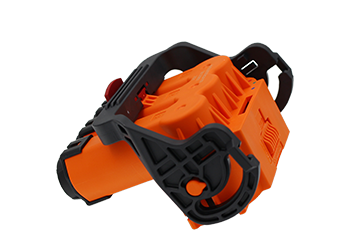

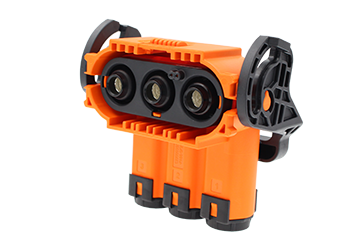

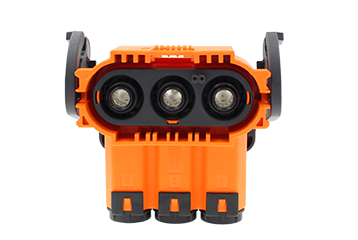

RIGHT ANGLE PLUG, 3 PIN, 180A MAX, ALTERNATE POSITION A/B/C,  WITH / WITHOUT HVIL, 25 /35 / 50MM2 CABLE

RATED CURRENT: 120A@25 MM2 CABLE
                                 150A@35 MM2 CABLE
                                 180A@50 MM2 CABLE

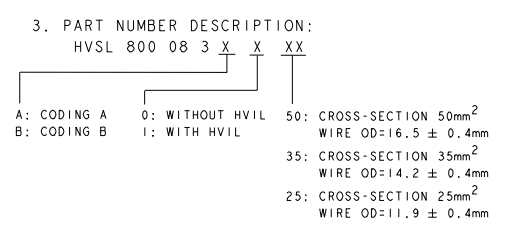

HOW TO ORDER:
