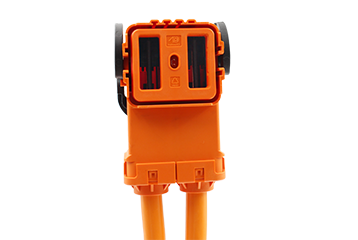

HVSLF300 RIGHT ANGLE PLUG
part number:
HVSLF30082XXXXX
datasheet:
  view / download
  view / download

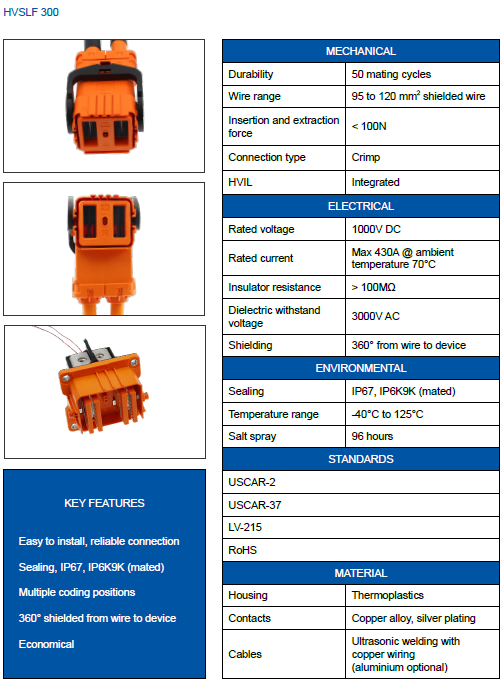

specifications:
connection:
screw
current:
350A 430A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION


2 PIN  RIGHT ANGLE PLUG, 430A MAX, CODING A/B/C/D/E, WITH/WITHOUT HVIL

RATED CURRENT:

430A@120MM2 CABLE
350A@95MM2  CABLE

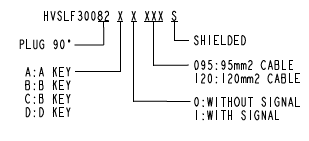

HOW TO ORDER:
