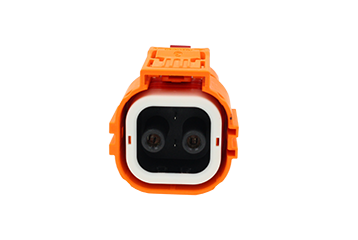

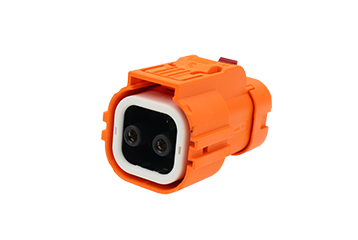

HVSL362062AXXXXI
part number:

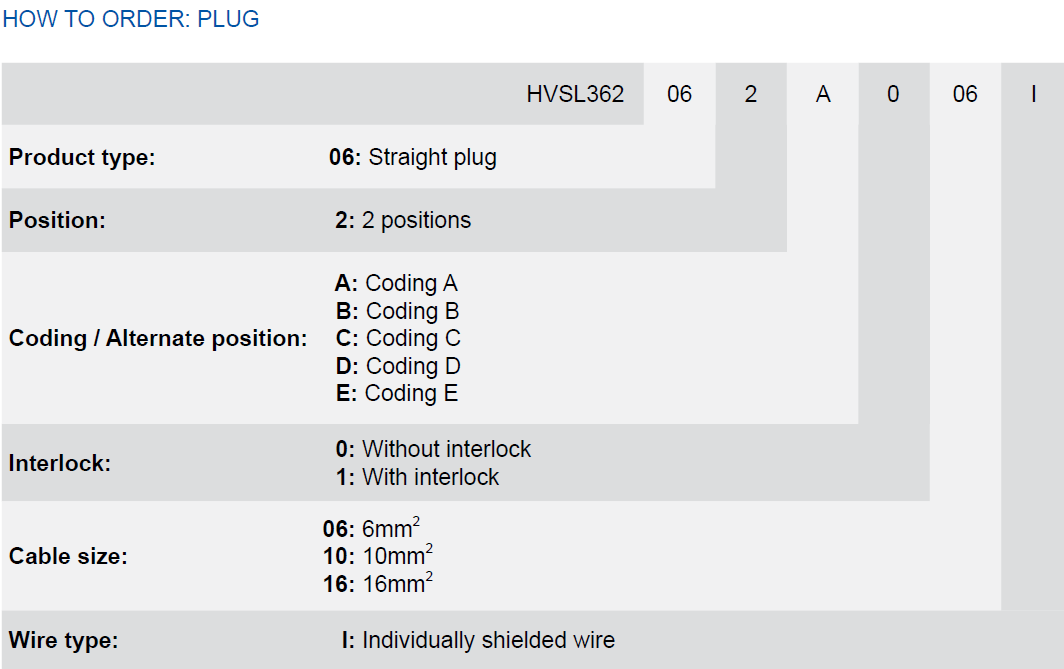

HVSL362062AXXXXI
datasheet:
  view / download
specifications:
connection:
crimp
current:
40A 80A 95A 60A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION
PLUG,  2 +2  PIN, 95A MAX, ALTERNATE POSITION A/B/C/D/E, WITH/WITHOU INTERLOCK, 6 TO 16 MM2 INDIVIDUALLY SHIELDED WIRE

RATED CURRENT:
40A@6MM2 CABLE SIZE
60A@10MM2 CABLE SIZE
80A@16MM2 CABLE SIZE, STAMPING TERMINALS
95A@16MM2 CABLE SIZE, MACHINING TERMINALS
