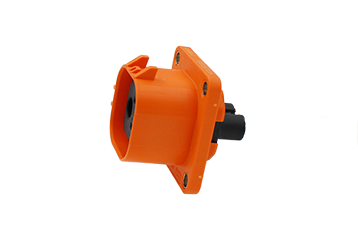

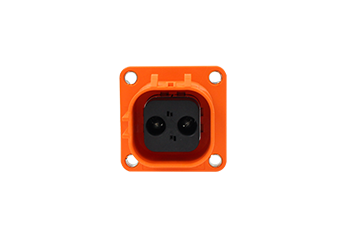

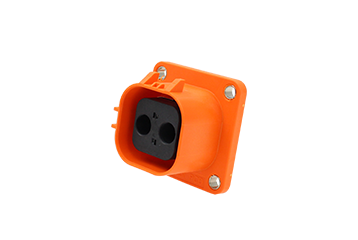

BOX MOUNTED RECEPTACLE, 2+2 PIN, 95A MAX, ALTERNATE POSITION A/B/C/D/E
RATED CURRENT:
40A@6MM2 CABLE SIZE
60A@10MM2 CABLE SIZE
80A@16MM2 CABLE SIZE, STAMPING TERMINALS
95A@16MM2 CABLE SIZE, MACHINING TERMINALS
RATED CURRENT:
40A@6MM2 CABLE SIZE
60A@10MM2 CABLE SIZE
80A@16MM2 CABLE SIZE, STAMPING TERMINALS
95A@16MM2 CABLE SIZE, MACHINING TERMINALS
RELATED ITEMS
HVSL362062AXXXXI
PLUG, 2 +2 PIN, 95A MAX, ALTERNATE POSITION A/B/C/D/E, WITH INTERLOCK, 6 TO 16 MM2 INDIVIDUALLY SHIELDED WIRE
HVSL362082XX06IXXLXXXX
RIGHT ANGLE PLUG, 2 +2 PIN, 40A, ALTERNATE POSITION A/B/C/D/E, WITH INTERLOCK, 6 MM2 SHIELDED WIRE
