HVSLM282022A

part number:

HVSLM282022A

datasheet:

view / download

specifications:

connection:

crimp

current:

23A 32A

housing:

plastic

IP Rating:

IP67 IP6K9K

market:

electric vehicle

positions:

product type:

power connector

voltage:

1000V

DESCRIPTION

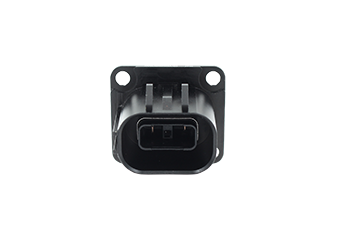

METAL SHELL MOUNTED RECEPTACLE, 32A MAX, 2+2 PIN, ALTERNATE POSITION A

RATED CURRENT:

32A@4MM2 SHIELDED CABLE
23A@2.5MM2 SHIELDED CABLE

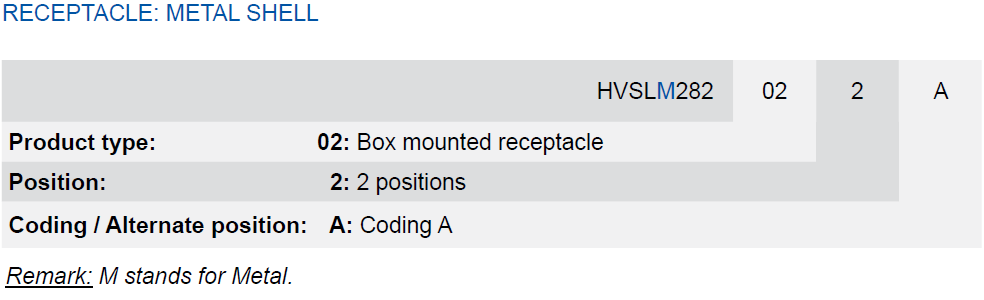

HOW TO ORDER:

RELATED ITEMS

HVSL282022X

BOX MOUNTED RECEPTACLE, 32A MAX, 2+2 PIN, ALTERNATE POSITION A/B/C/D/E/F

HVSL282032X

BLIND HOLE MOUNTED RECEPTACLE, 32A MAX, 2+2 PIN, ALTERNATE POSITION A/B/C/D/E/F

HVSL282042X

RIGHT-ANGLE RECEPTACLE, 32A MAX, 2+2 PIN, HIVL, ALTERNATE POSITION A/B/C/D/E/F

HVSL282062AXXXXI

PLUG, 2+2 PIN, 32A MAX, ALTERNATE POSITION A/B/C/D/E/F, WITH HVIL, 2.5 TO 4 MM2 INDIVIDUALLY SHIELED WIRE

HVSLM282022A

METAL SHELL BOX MOUNTED RECEPTACLE, 32A MAX, 2+2 PIN, ALTERNATE POSITION A

HVSLW282022XX

WATER PROOF BOX MOUNTED RECEPTACLE, 2+2 PIN, 32A MAX, ALTERNATE POSITION A/B/D
