HVSL366066A006I

part number:

HVSL366066A006I

datasheet:

view / download

specifications:

connection:

crimp

current:

40A

housing:

plastic

IP Rating:

IP67

market:

electric vehicle

positions:

product type:

power connector

shape:

rectangular

voltage:

1000V

Wire Range: 6mm2

Rated Current: 40A Max

DESCRIPTION

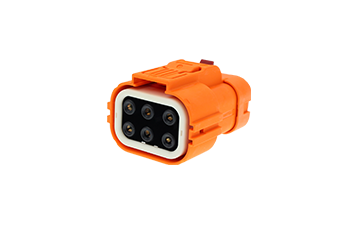

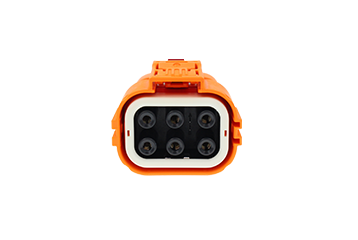

PLUG, 6 +2 PIN, ALTERNATE POSITION A, WITHOUT HVIL, 6MM2, INDIVIDUALLY SHIELDED WIRE

RELATED ITEMS

HVSL366026A

BOX MOUNTED RECEPTACLE, 6+2 PIN, ALTERNATE POSITION A

HVSL366066A006I

PLUG, 6 +2 PIN, ALTERNATE POSITION A, WITHOUT HVIL, 6MM2, INDIVIDUALLY SHIELDED WIRE

HVSL366066A103I

PLUG, 6 +2 PIN, ALTERNATE POSITION A, HVIL, 2.5MM2, INDIVIDUALLY SHIELDED WIRE

HVSL366066A104I

PLUG, 6 +2 PIN, ALTERNATE POSITION A, HVIL, 4MM2, INDIVIDUALLY SHIELDED WIRE

HVSL366066A106I

PLUG, 6 +2 PIN, ALTERNATE POSITION A, HVIL, 6MM2, INDIVIDUALLY SHIELDED WIRE
