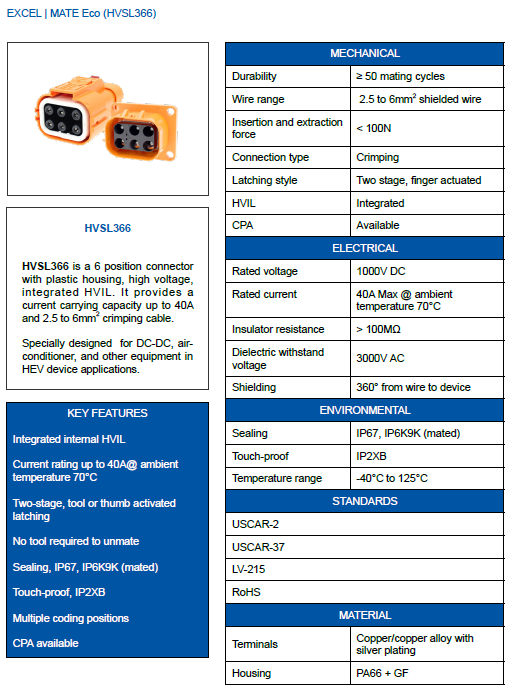

BOX MOUNTED RECEPTACLE, 40A Max, 6+2 PIN(HVIL), ALTERNATE POSITION A/B
RATED CURRENT:
40A@6MM2 SHIELDED WIRE
32A@4MM2 SHIELDED WIRE
20A@2.5MM2 SHIELDED WIRE
RATED CURRENT:
40A@6MM2 SHIELDED WIRE
32A@4MM2 SHIELDED WIRE
20A@2.5MM2 SHIELDED WIRE
RELATED ITEMS
HVSL366066XXXXI
PLUG, 6 +2 PIN(HVIL), 40A MAX, ALTERNATE POSITION A/B, WITH / WITHOUT HVIL, 2.5 TO 6MM2, INDIVIDUALLY SHIELDED WIRE
