HVSL365065XXXXI
part number:
HVSL365065XXXXI
datasheet:
  view / download
specifications:
connection:
crimp
current:
32A 40A 20A
housing:
plastic
IP Rating:
IP67
market:
electric vehicle
positions:
5
product type:
power connector
voltage:
1000V
DESCRIPTION

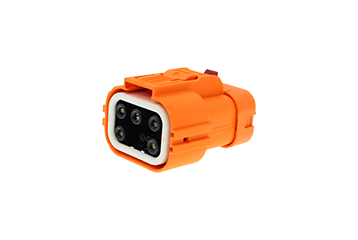

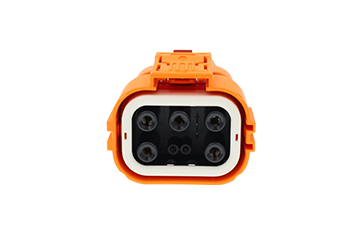

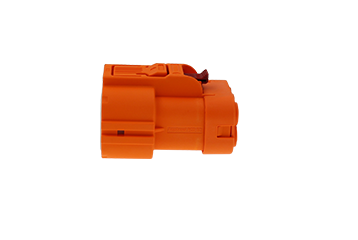

PLUG, 5 +2 PIN, 40A Max, HVIL, 2.5 TO 6 MM2, INDIVIDUALLY SHIELDED WIRE, ALTERNATE POSITION A/B

RATED CURRENT:

40A@6 MM2 SHIELDED WIRE
32A@4 MM2 SHIELDED WIRE
20A@2.5MM2 SHIELDED WIRE
