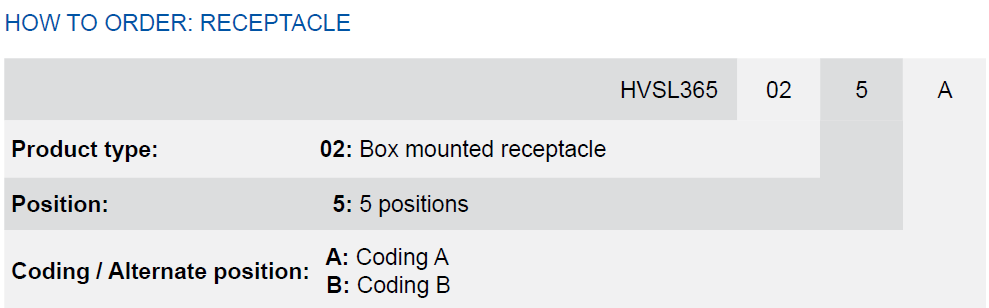

HVSL365025X
part number:
HVSL365025X
datasheet:
  view / download
specifications:
connection:
crimp
current:
32A 40A 20A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
5
product type:
power connector
voltage:
1000V

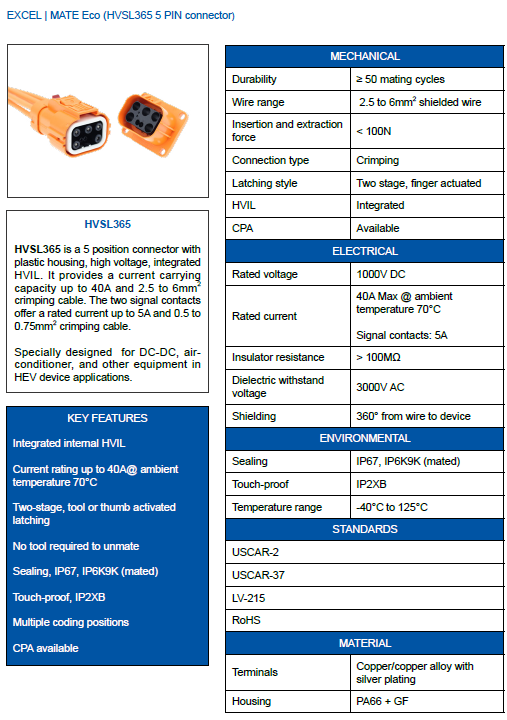

DESCRIPTION

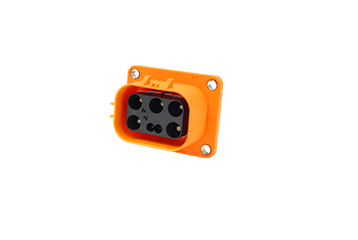

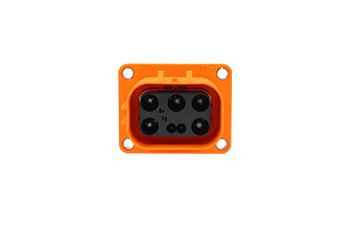

BOX MOUNTED RECEPTACLE, 40A MAX,5+2 PIN, ALTERNATE POSITION  A/B

RATED CURRENT:

40A@6MM2 SHIELDED CABLE
32A@4MM2 SHIELDED CABLE
23A@2.5MM2 SHIELDED CABLE
