HVSL280063XXXXXX
part number:
HVSL280063XXXXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
23A 32A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
3
product type:
power connector
voltage:
1000V
DESCRIPTION

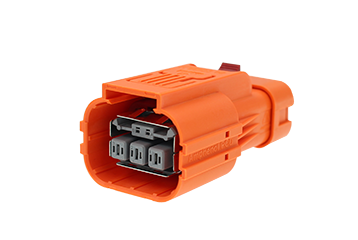

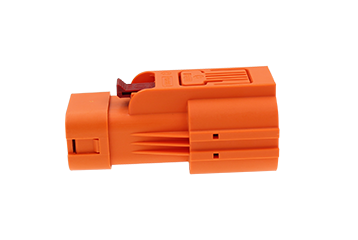

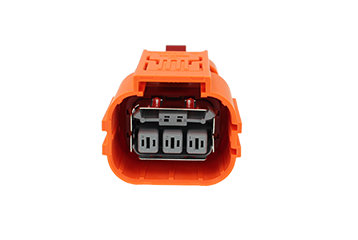

STRAIGHT PLUG, 3+2(HVIL) PIN, 32A MAX, ALTERNATE POSITION A/B/C/D/E

RATED CURRENT:

32A@4MM2 SHIELDED CABLE
23A@2.5MM2 SHIELDED CABLE

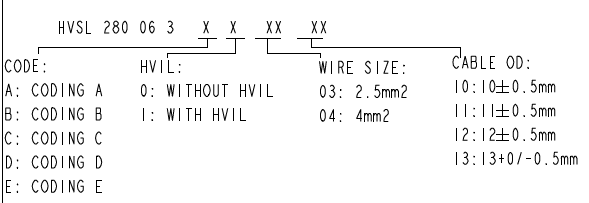

HOW TO ORDER:
