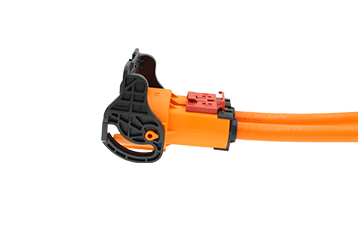

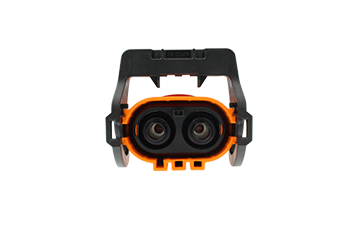

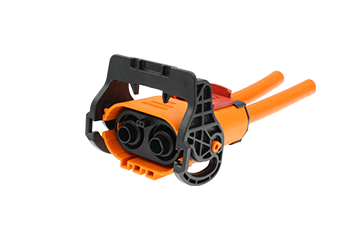

HVSLP1000 PLUG

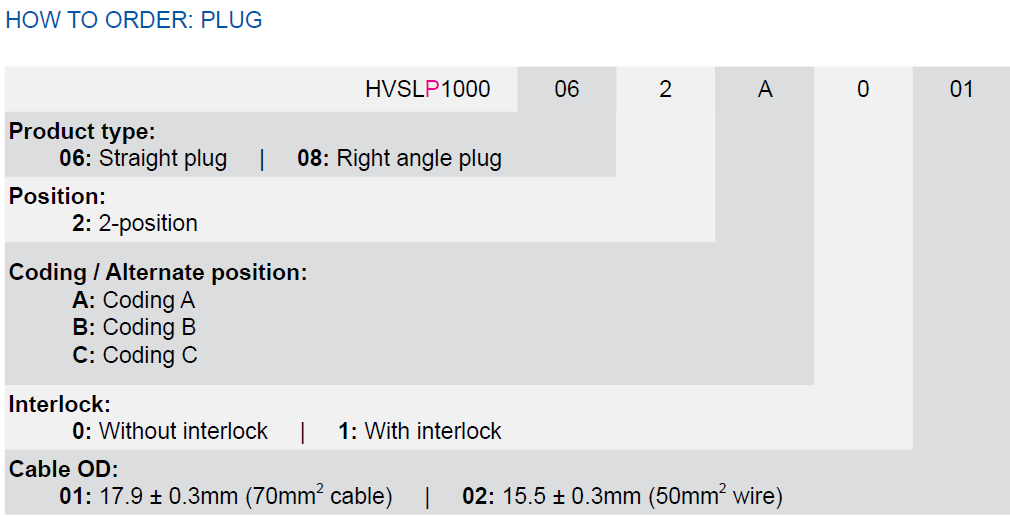

part number:
HVSLP1000062XXXX

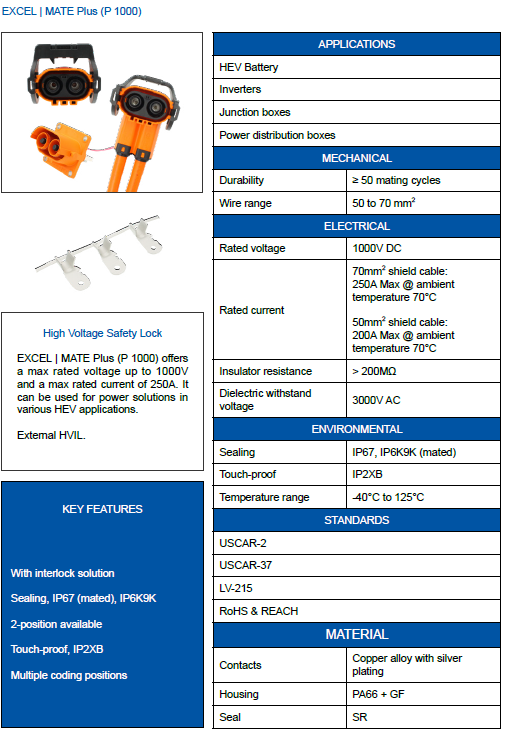

datasheet:
  view / download
specifications:
connection:
crimp
current:
200A 250A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
series:
hvsl
voltage:
1000V
DESCRIPTION


 PLUG, 2 PIN, 250A MAX, ALTERNATE POSITION A/B/C, HVIL

RATED CURRENT:
250A@70MM2 SHIELDED CABLE
200A@50MM2 SHIELDED CABLE
