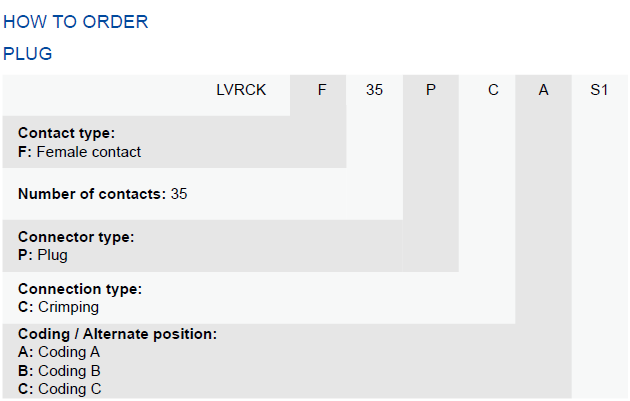

LVRCKF35PCXS1
part number:
LVRCKF35PCXS1
datasheet:
  view / download
specifications:
connection:
crimp
current:
5A
housing:
plastic
IP Rating:
IP67
market:
electric vehicle
positions:
35
product type:
signal connector
voltage:
250V 300V

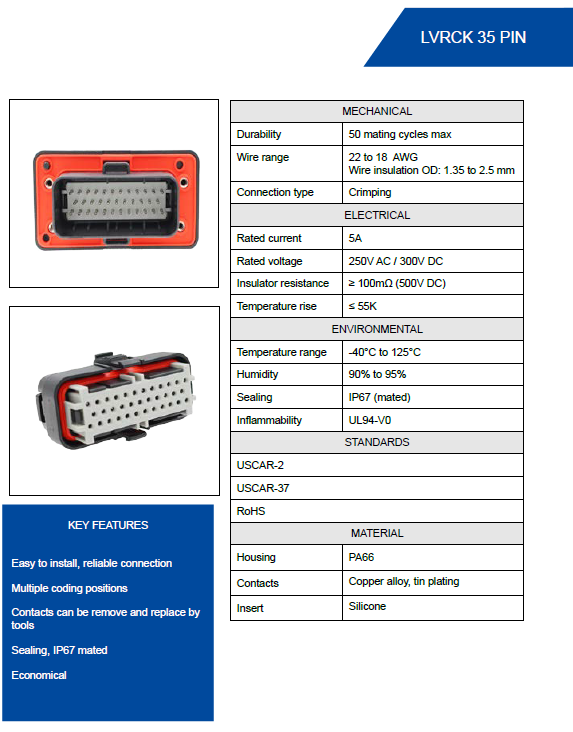

Rated Voltage: 250V AC / 300V DC
Rated Current : 5A (22 To 18 AWG)
Durability: 50 Mating Cycles Max
DESCRIPTION

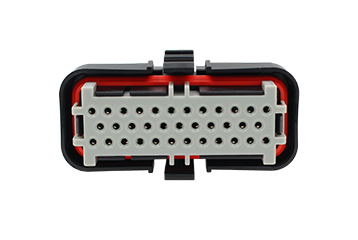

35PIN PLUG, KEYWAY A ，FEMALE CONTACT
