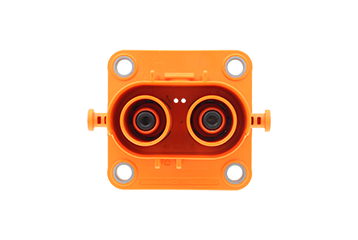

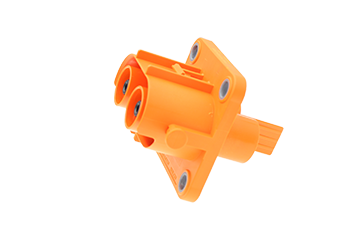

HVSL1400022XYD8S6
part number:
HVSL1400022XYD8S6
datasheet:
  view / download
specifications:
connection:
crimp
current:
300A 400A 450A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
Cable Range: 70 To 120mm2
DESCRIPTION
RECEPTACLE, 2 PIN, , 450A MAX, 70 TO 120MM2 CABLE

RATED CURRENT:
450A@120MM2 SHIELDED CABLE
400A@95MM2 SHIELDED CABLE
300A@70MM2 SHIELDED CABLE
