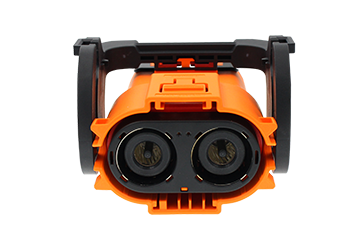

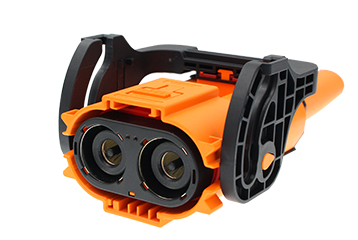

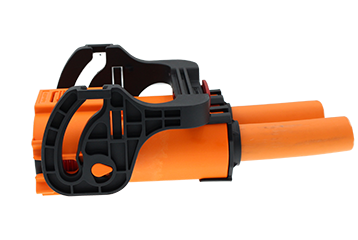

PLUG, 2 PIN, ALTERNATE POSITION A/B/C,  WITH HVIL, 70MM2 / 95MM2 CABLE

RATED CURRENT:
250A@70 MM² CABLE SIZE
350A@95MM² CABLE SIZE

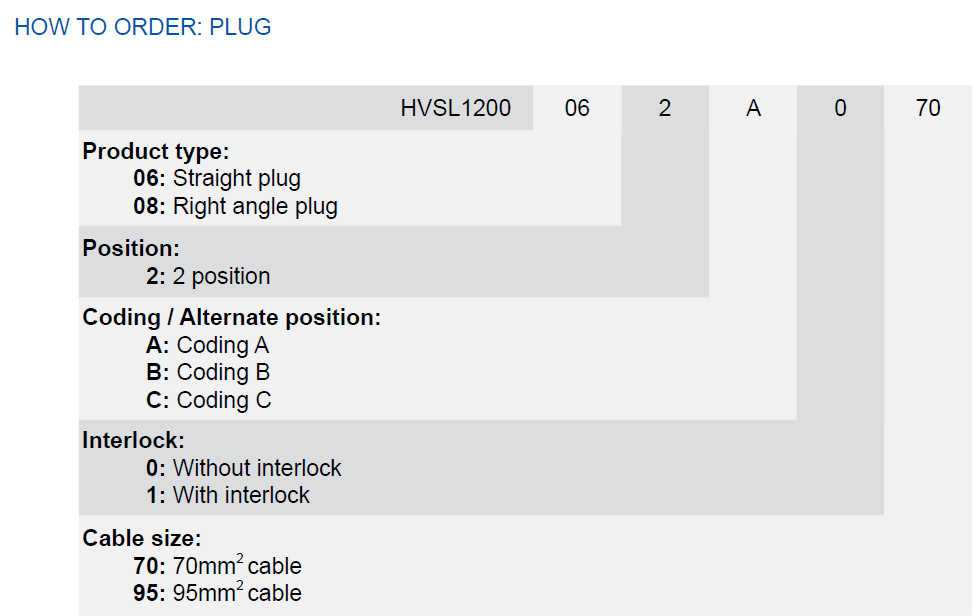

CODING A WITH 70MM2 CABLE SIZE, 250A : HVSL1200062A170
CODING B WITH 70MM2 CABLE SIZE, 250A : HVSL1200062B170
CODING C WITH 70MM2 CABLE SIZE, 250A : HVSL1200062C170

CODING A WITH 95MM2 CABLE SIZE, 350A : HVSL1200062A195
CODING B WITH 95MM2 CABLE SIZE, 350A : HVSL1200062B195
CODING C WITH 95MM2 CABLE SIZE, 350A : HVSL1200062C195
