HVSL633063XXXXI
part number:
HVSL633063XXXXI

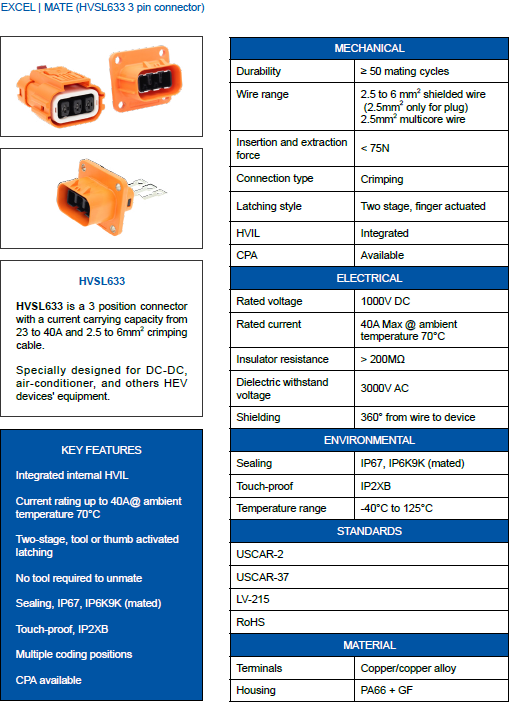

specifications:
connection:
crimp
current:
23A
32A
40A
housing:
plastic
IP Rating:
IP67
IP6K9K
market:
electric vehicle
positions:
3
product type:
power connector
voltage:
1000V
Wire Range: 2.5 To 6 Mm2 Shielded Wire
Rated Current: 23A To 40 A

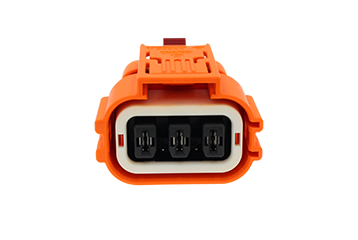

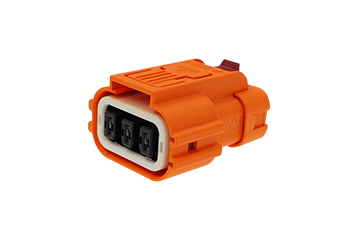

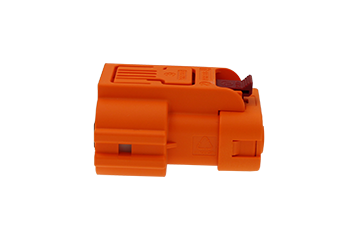

STRAIGHT PLUG, 3+2(HVIL) PIN, ALTERNATE POSITION A/B/C/D/E, WITH INTERLOCK, 2.5 /4 /6 MM2 INDIVIDUALLY SHIELDED WIRE
RATED CURRENT: 23A@2.5mm2 cable size
32A@4mm2 cable size
40A@6mm2 cable size

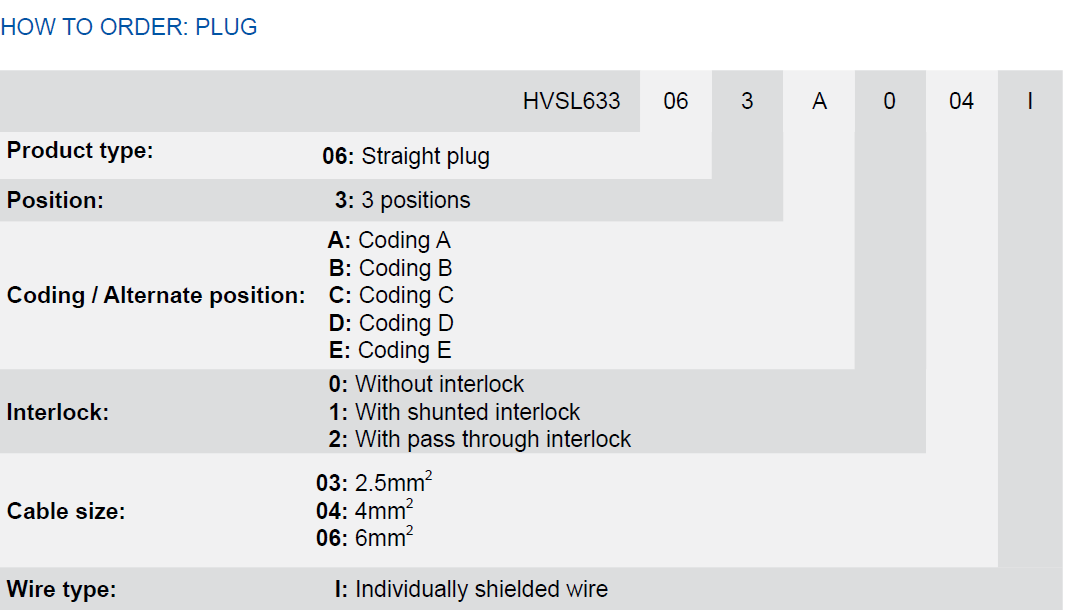

PN EXAMPLE: CODING A: HVSL633063A103I
RATED CURRENT: 23A@2.5mm2 cable size
32A@4mm2 cable size
40A@6mm2 cable size
PN EXAMPLE: CODING A: HVSL633063A103I
