HVSL800022XXXX
part number:
HVSL800022XXXX
datasheet:
  view / download
specifications:
connection:
screw
current:
125A 150A 180A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION
BOX MOUNTED RECEPTACLE, 2 PIN, 180A MAX, ALTERNATE POSITION A/B/C, WITH/WITHOUT HVIL, HOLE OR SCREW INTERNAL OT TERMINAL M6

RATED CURRENT: 120A@25 MM2 CABLE
                                 150A@35 MM2 CABLE
                                 180A@50 MM2 CABLE

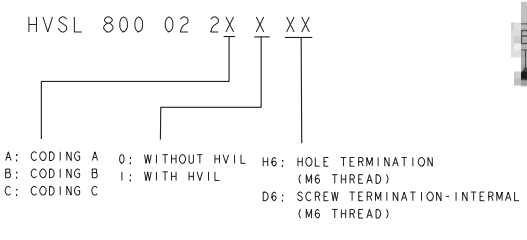

HOW TO ORDER:
