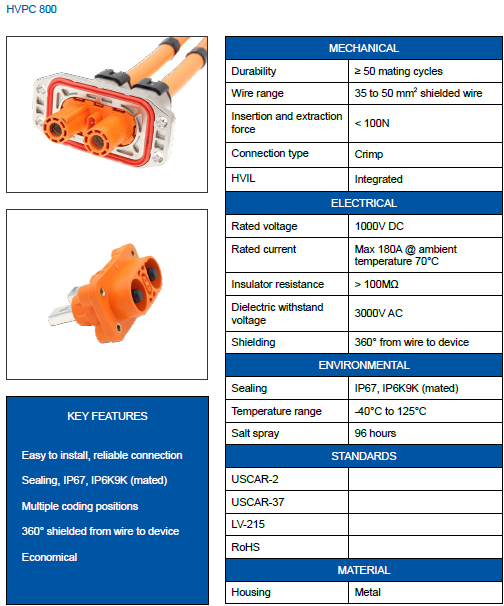

HVPC800022XXH6
part number:
HVPC800022XXH6
datasheet:
  view / download
specifications:
connection:
bus bar
current:
150A 180A
housing:
metal
IP Rating:
IP67
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION

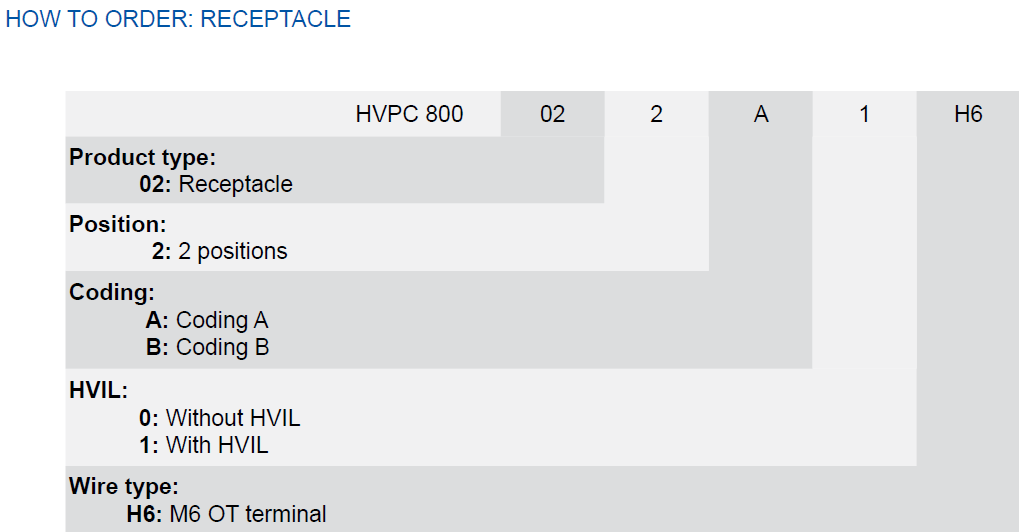

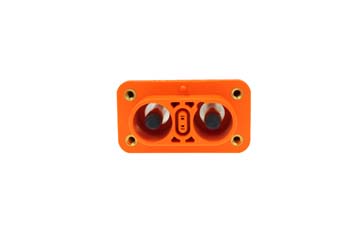

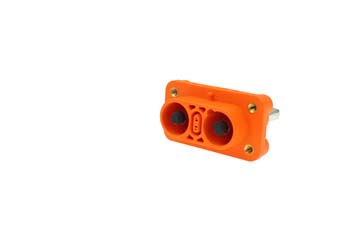

RECEPTACLE, 2 PIN, CODING A/B, WITH/ WITHOUT HVIL, COPPER TERMINATION, M6

RATED CURRENT: 180A@50MM2 CABLE SIZE
                              150A@35MM2 CABLE SIZE
