AL400022LXXXX
part number:
AL400022LXXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
40A 80A 60A
housing:
plastic
IP Rating:
IP67
market:
electric vehicle industrial
positions:
2
product type:
power connector signal connector
voltage:
900V
DESCRIPTION

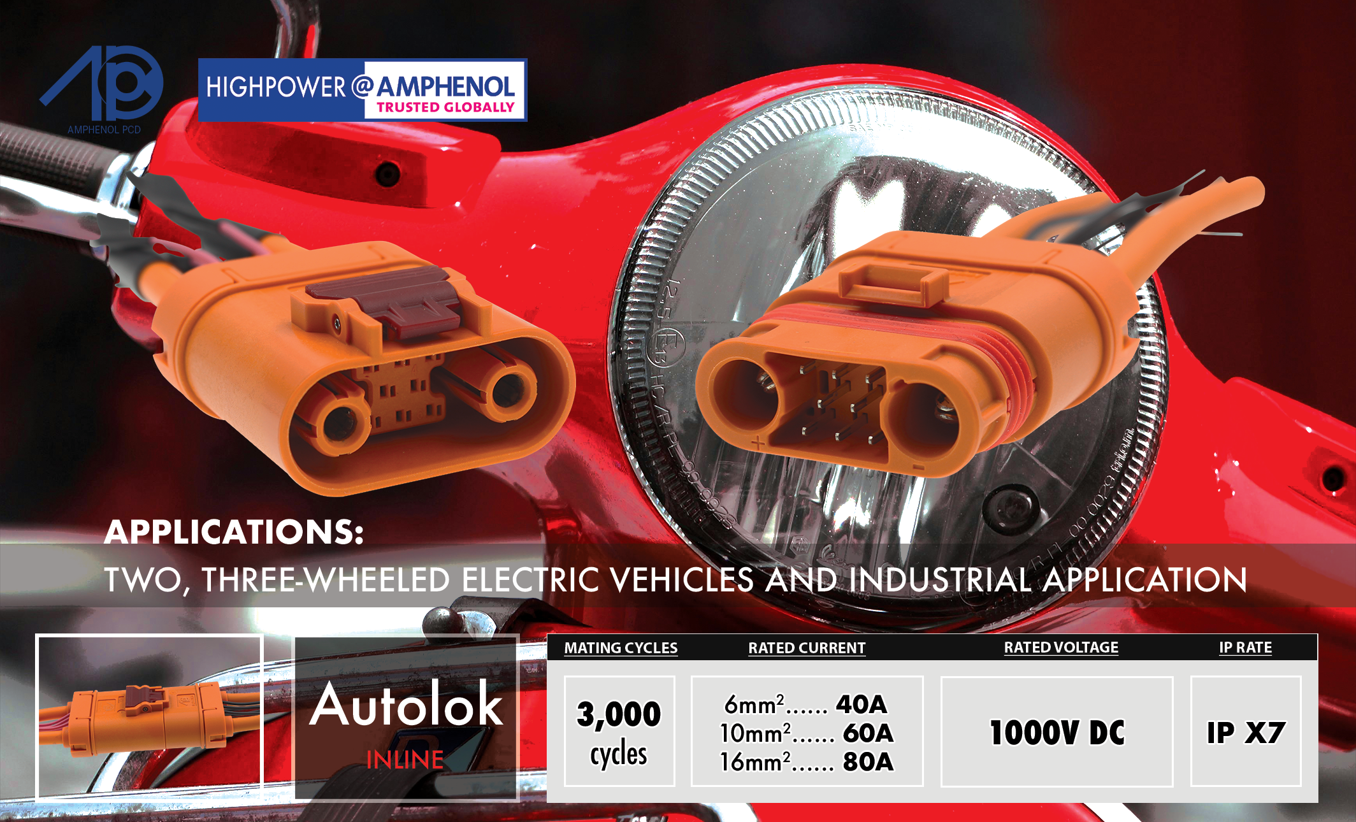

AUTOLOK IN-LINE RECEPTACLE, 80A MAX

RATED CURRENT:

80A@16MM2 SHIELDED CABLE
60A@10MM2 SHIELDED CABLE
40A@6MM2 SHIELDED CABLE

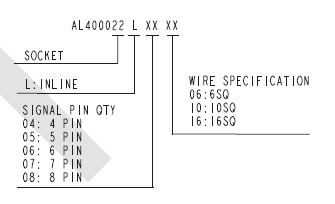

HOW TO ORDER:
