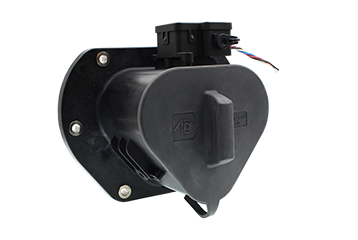

MCS INLET
part number:
HVCO4FN003
datasheet:
  view / download
specifications:
connection:
crimp
housing:
plastic
IP Rating:
IP67
market:
electric vehicle
positions:
7
product type:
power connector
voltage:
1500V
Rated Voltage: 1500V / 30V
Rated Current: 3000A (BUSBAR), 2A
Mating Cycles >2,000 Cycles
DESCRIPTION

MCS INLET, BOX MOUNTING ASSEMBLY
IP67 RATED FOR BOX MOUNTING
IP44 RATED FOR MATING
IP54 RATED WITH CAP



ELOCK:
