HVCONF0100S1LXXXX
part number:
HVCONF0100S1LXXXX
datasheet:
  view / download
specifications:
connection:
bus bar
current:
housing:
plastic
IP Rating:
market:
electric vehicle
positions:
5
product type:
power connector
voltage:
1000V

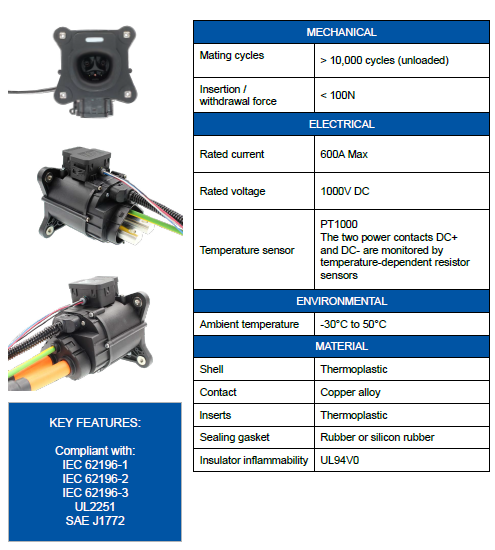

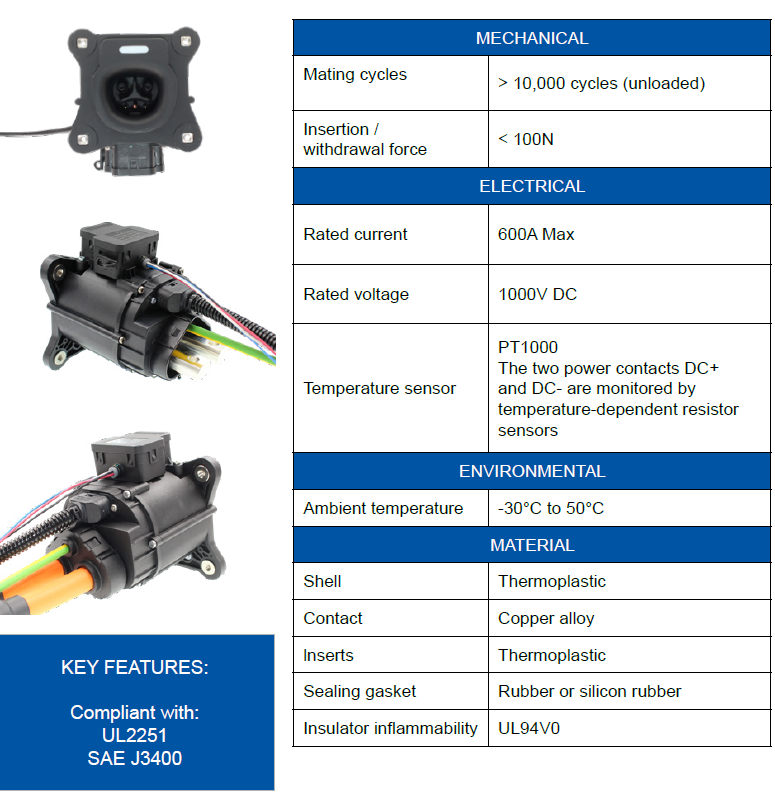

Standard: NACS
Rated Voltage: 1000V ( DC+/DC-), 30V (CS& CP )
Rated Current: 600A ( DC+ & DC ), 2A (CS& CP)
Mating Cycles >10,000 Cycles
DESCRIPTION

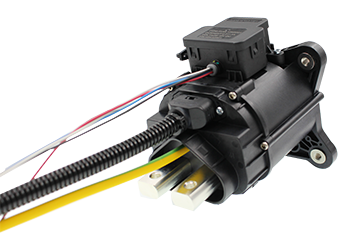

NACS VEHICLE INLET, BUSBAR VERSION WITHOUT LED, DC1000V/600A CABLE ASSEMBLY, FOR DC LIQUID-COOLED CHARGING
