HVSL100002XXXXXX
part number:
HVSL100002XXXXXX
datasheet:
  view / download
specifications:
connection:
crimp
current:
150A 180A 250A 120A
housing:
plastic
IP Rating:
IP67 IP6K9K
market:
electric vehicle
positions:
2
product type:
power connector
voltage:
1000V
DESCRIPTION

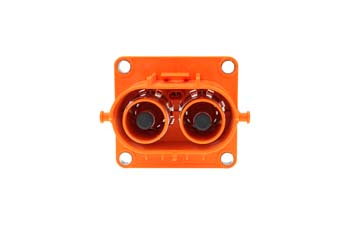

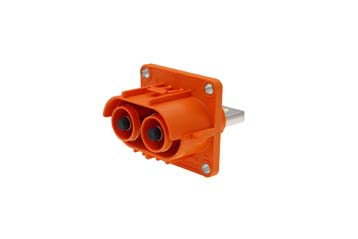

250A MAX, BOX MOUNTED RECEPTACLE, 2 PIN, ALTERNATE POSITION A/B/C/D, HVIL

RATED CURRENT:
250A@70MM2 SHIELDED CABLE
180A@50MM2 SHIELDED CABLE
150A@35MM2 SHIELDED CABLE
120A@25MM2 SHIELDED CABLE

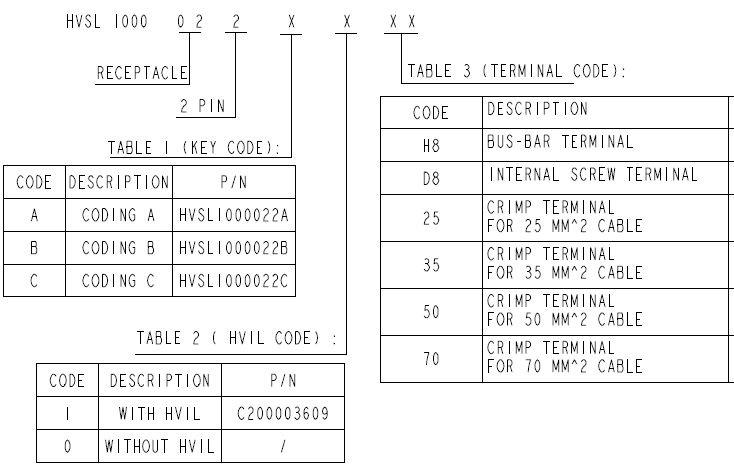

HOW TO ORDER:

RELATED ITEMS
