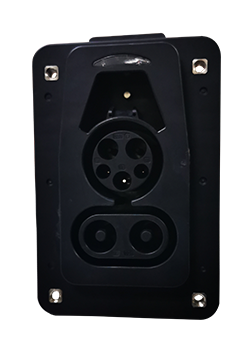

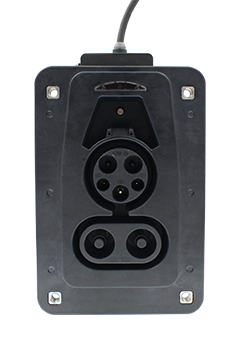

HVCOSF003LXXXX

part number:HVCOSF003LXXXX

datasheet:

view / download

specifications:

connection: crimp

housing: plastic

IP Rating: IP55

market: electric vehicle

positions: 7

product type: power connector

shape: circular

voltage: 250V

Rated Voltage: 600V DC (DC+& DC-), 250V AC (L1,L2/N ), 30V (CP & CS)

Rated Current: 200A (DC+ & DC-), 48A (L1,L2/N ), 2A (CP & CS)

Mating Cycles >10,000 Cycles

DESCRIPTION

SAE COMBO INLET, AC48A+DC200A
