HVBI902R6AFCDGRFG25L0000

part number:

HVBI902R6AFCDGRFG25L0000

datasheet:

view / download

specifications:

connection:

bus bar

housing:

metal

IP Rating:

IP67 IP6K9K

market:

electric vehicle

positions:

product type:

power connector

shape:

circular

voltage:

1000V

Rated Current: 120A + 2 X 7.5A

DESCRIPTION

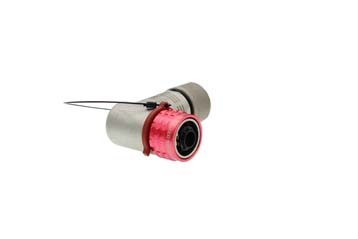

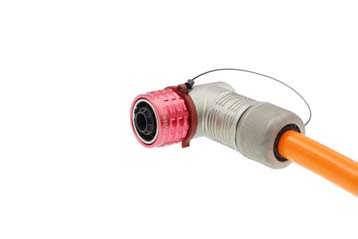

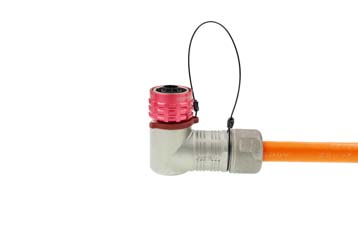

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,120° GREEN, SHIELDED, 25MM2 CABLE

RELATED ITEMS

HVBI002R6AMHARD

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 30° RED

HVBI002R6AMHBBK

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 60° BLACK

HVBI002R6AMHCYL

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 90° YELLOW

HVBI002R6AMHDGR

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 120° GREEN

HVBI002R6AMHEBL

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 150° BLUE

HVBI002R6AMHFPU

RECEPTACLE, 6MM MALE CONTACT, WITH HVIL, COOPER BAR TERMINATION, 180° PURPLE

HVBI002R6BMHARD

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 30° RED

HVBI002R6BMHBBK

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 60° BLACK

HVBI002R6BMHCYL

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 90° YELLOW

HVBI002R6BMHDGR

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 120° GREEN

HVBI002R6BMHEBL

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 150° BLUE

HVBI002R6BMHFPU

RECEPTACLE, 6MM MALE CONTACT, WITHOUT HVIL, COOPER BAR TERMINATION, 180° PURPLE

HVBI702R6AFCARDFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,30° RED, SHIELDED, 25MM2 CABLE

HVBI702R6AFCBBKFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,60° BLACK, SHIELDED, 25MM2 CABLE

HVBI702R6AFCCYLFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,90° YELLOW, SHIELDED, 25MM2 CABLE

HVBI702R6AFCDGRFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,120° GREEN, SHIELDED, 25MM2 CABLE

HVBI702R6AFCEBLFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,150° BLUE, SHIELDED, 25MM2 CABLE

HVBI702R6AFCFPUFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,180° PURPLE, SHIELDED, 25MM2 CABLE

HVBI702R6BFCARDFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,30° RED, SHIELDED, 25MM2 CABLE

HVBI702R6BFCBBKFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,60° BLACK, SHIELDED, 25MM2 CABLE

HVBI702R6BFCCYLFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,90° YELLOW, SHIELDED, 25MM2 CABLE

HVBI702R6BFCDGRFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,120° GREEN, SHIELDED, 25MM2 CABLE

HVBI702R6BFCEBLFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,150° BLUE, SHIELDED, 25MM2 CABLE

HVBI702R6BFCFPUFG25L0000

STRAIGHT PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,180° PURPLE, SHIELDED, 25MM2 CABLE

HVBI902R6AFCARDFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,30° RED, SHIELDED, 25MM2 CABLE

HVBI902R6AFCBBKFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,60° BLACK, SHIELDED, 25MM2 CABLE

HVBI902R6AFCCYLFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,90° YELLOW, SHIELDED, 25MM2 CABLE

HVBI902R6AFCDGRFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,120° GREEN, SHIELDED, 25MM2 CABLE

HVBI902R6AFCEBLFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,150° BLUE, SHIELDED, 25MM2 CABLE

HVBI902R6AFCFPUFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITH HVIL,180° PURPLE, SHIELDED, 25MM2 CABLE

HVBI902R6BFCARDFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,30° RED, SHIELDED, 25MM2 CABLE

HVBI902R6BFCBBKFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,60° BLACK, SHIELDED, 25MM2 CABLE

HVBI902R6BFCCYLFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,90° YELLOW, SHIELDED, 25MM2 CABLE

HVBI902R6BFCDGRFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,120° GREEN, SHIELDED, 25MM2 CABLE

HVBI902R6BFCEBLFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,150° BLUE, SHIELDED, 25MM2 CABLE

HVBI902R6BFCFPUFG25L0000

RIGHT ANGLE PLUG, 6MM FEMALE CRIMP CONTACT, WITHOUT HVIL,180° PURPLE, SHIELDED, 25MM2 CABLE
